IDT54FCT821C - HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS

Integrated Device

📥 Download Datasheet

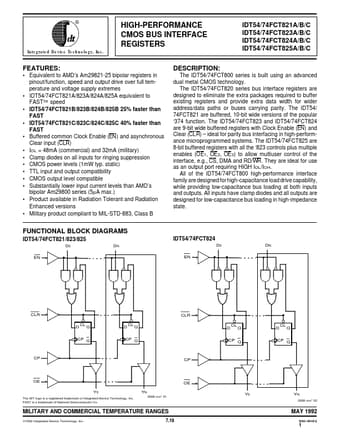

IDT54FCT821C Datasheet Preview — Preview of IDT54FCT821C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IDT54FCT821C
Manufacturer: Integrated Device
File Size: 186.29 KB
Datasheet: IDT54FCT821C_IntegratedDeviceTechnology.pdf
Description: HIGH-PERFORMANCE CMOS BUS INTERFACE REGISTERS

IDT54FCT821C Product details

Description

Integrated Device Technology, Inc.

Features

Equivalent to AMD’s Am29821-25 bipolar registers in pinout/function, speed and output drive over full temperature and voltage supply extremes.
IDT54/74FCT821A/823A/824A/825A equivalent to FAST™ speed.
IDT54/74FCT821B/823B/824B/825B 25% faster than FAST.
IDT54/74FCT821C/823C/824C/825C 40% faster than FAST.
Buffered common Clock Enable (EN) and asynchronous Clear input (CLR).
IOL = 48mA (commercial) and 32mA (military).
Clamp diodes.
