IDT54FCT138A, IDT54FCT138 FAST CMOS 1-OF-8 DECODER

IDT54FCT138A Description

® Integrated Device Technology, Inc.FAST CMOS 1-OF-8 DECODER WITH ENABLE IDT54/74FCT138 IDT54/74FCT138A IDT54/74FCT138C .
The IDT54/74FCT138/A/C are 1-of-8 decoders built using an advanced dual metal CMOS technology.

IDT54FCT138A Features

* IDT54/74FCT138 equivalent to FAST™ speed
* IDT54/74FCT138A 35% faster than FAST
* IDT54/74FCT138C 40% faster than FAST
* Equivalent to FAST speeds output drive over full tem- perature and voltage supply extremes
* IOL = 48mA (commercial) and 32mA (military)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDT54FCT138A, IDT54FCT138. Please refer to the document for exact specifications by model.

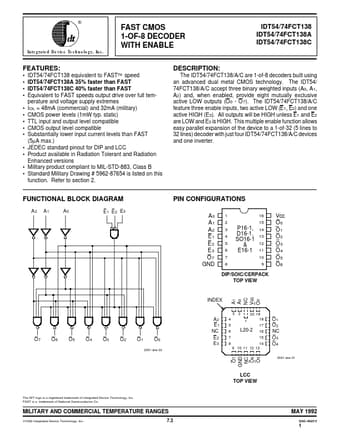

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT54FCT138A, IDT54FCT138
Manufacturer
IDT
File Size
65.90 KB
Datasheet
IDT54FCT138_IntegratedDeviceTechnology.pdf
Description
FAST CMOS 1-OF-8 DECODER
Note
This datasheet PDF includes multiple part numbers: IDT54FCT138A, IDT54FCT138.
Please refer to the document for exact specifications by model.
