IDT54FCT138AT, IDT54FCT138CT FAST CMOS 1-OF-8 DECODER

IDT54FCT138AT Description

Integrated Device Technology, Inc.FAST CMOS 1-OF-8 DECODER WITH ENABLE IDT54/74FCT138T/AT/CT .
The IDT54/74FCT138T/AT/CT are 1-of-8 decoders built using an advanced dual metal CMOS technology.

IDT54FCT138AT Features

* Std. , A and C speed grades
* Low input and output leakage ≤1µA (max. )
* CMOS power levels
* True TTL input and output compatibility
* VOH = 3.3V (typ. )
* VOL = 0.3V (typ. )
* High drive outputs (-15mA IOH, 48mA IOL)
* Meets or exceeds

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDT54FCT138AT, IDT54FCT138CT. Please refer to the document for exact specifications by model.

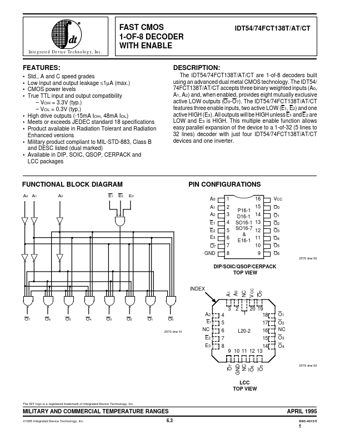

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT54FCT138AT, IDT54FCT138CT
Manufacturer
IDT
File Size
106.79 KB
Datasheet
IDT54FCT138CT_IntegratedDeviceTechnology.pdf
Description
FAST CMOS 1-OF-8 DECODER
Note
This datasheet PDF includes multiple part numbers: IDT54FCT138AT, IDT54FCT138CT.
Please refer to the document for exact specifications by model.
