IDT54FCT139A, IDT54FCT139 FAST CMOS DUAL 1-OF-4 DECODER

IDT54FCT139A Description

IDT54/74FCT139/A/C FAST CMOS DUAL 1-0F-4®DECODER WITH ENABLE FAST CMOS DUAL 1-OF-4 DECODER Integrated Device Technology, Inc.WITH ENABLE MILITARY.
The IDT54/74FCT139/A/C are dual 1-of-4 decoders built using an advanced dual metal CMOS technology.

IDT54FCT139A Features

* IDT54/74FCT139 equivalent to FAST™ speed
* IDT54/74FCT139A 35% faster than FAST
* IDT54/74FCT139C 45% faster than FAST
* Equivalent to FAST output drive over full temperature and voltage supply extremes
* IOL = 48mA (commercial) and 32mA (military)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDT54FCT139A, IDT54FCT139. Please refer to the document for exact specifications by model.

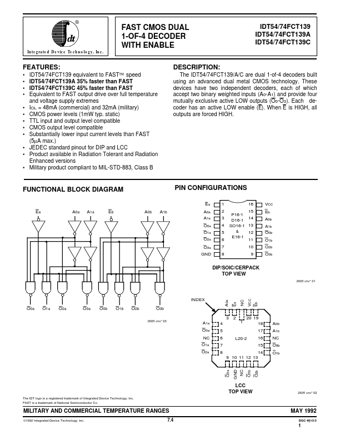

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT54FCT139A, IDT54FCT139
Manufacturer
IDT
File Size
103.85 KB
Datasheet
IDT54FCT139_IntegratedDeviceTechnology.pdf
Description
FAST CMOS DUAL 1-OF-4 DECODER
Note
This datasheet PDF includes multiple part numbers: IDT54FCT139A, IDT54FCT139.
Please refer to the document for exact specifications by model.
