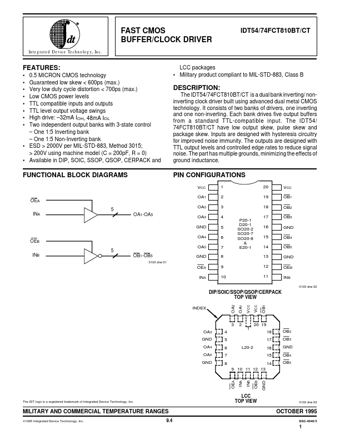

IDT54FCT810BT Datasheet Preview — Preview of IDT54FCT810BT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IDT54FCT810BT
Manufacturer: Integrated Device
File Size: 107.04 KB
Datasheet: IDT54FCT810BT_IntegratedDeviceTechnology.pdf
Description: FAST CMOS BUFFER/CLOCK DRIVER

IDT54FCT810BT Product details

Description

The IDT54/74FCT810BT/CT is a dual bank inverting/ noninverting clock driver built using advanced dual metal CMOS technology.

Features

0.5 MICRON CMOS technology Guaranteed low skew < 600ps (max. ) Very low duty cycle distortion < 700ps (max. ) Low CMOS power levels TTL compatible inputs and outputs TTL level output voltage swings High drive:.
32mA IOH, 48mA IOL Two independent output banks with 3-state control.
One 1:5 Inverting bank.
One 1:5 Non-Inverting bank.
ESD > 2000V per MIL-STD-883, Method 3015; > 200V usin.
