ICS831724I Differential Clock/Data Multiplexer

ICS831724I Description

Differential Clock/Data Multiplexer ICS831724I DATA SHEET General .
The ICS831724I is a high-performance, differential HCSL clock/data multiplexer and fanout buffer.

ICS831724I Features

* 2:1 differential clock/data multiplexer with fanout
* Two selectable, differential inputs
* Each differential input pair can accept the following levels: HCSL, LVDS, LVPECL.
* Four differential HCSL outputs
* Maximum input/output clock frequency: 350MHz

📥 Download Datasheet

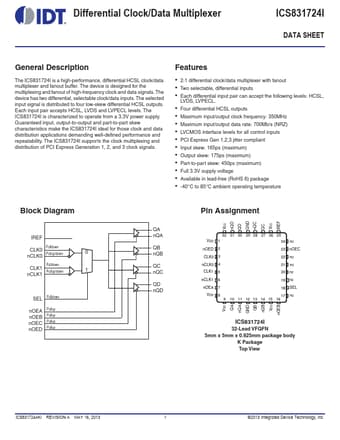

Preview of ICS831724I PDF
datasheet Preview Page 2 datasheet Preview Page 3
