ICS8312 1-TO-12 LVCMOS / LVTTL FANOUT BUFFER

ICS8312 Description

Integrated Circuit Systems, Inc.ICS8312 LOW SKEW, 1-TO-12 LVCMOS / LVTTL FANOUT BUFFER .
The ICS8312 is a low skew, 1-to-12 LVCMOS / LVTTL Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™family of High Performance Clock Solution.

ICS8312 Features

* 12 LVCMOS / LVTTL outputs
* LVCMOS / LVTTL clock input
* Maximum output frequency: 250MHz
* Output skew: 150ps (maximum)
* Operating supply modes: Core/Output 3.3V/3.3V, 2.5V/2.5V, 1.8V/1.8V, 3.3V/2.5V, 3.3V/1.8V, 2.5V/1.8V
* 0°C to 85°C ambient oper

ICS8312 Applications

* that also require a limited output voltage. BLOCK DIAGRAM PIN ASSIGNMENT GND GND VDDO VDDO Q0 Q1 Q2 Q3 CLK_EN nD Q LE 12 GND VDD Q0:Q11 CLK_EN CLK GND OE VDD GND 1 2 3 4 5 6 7 8 32 31 30 29 28 27 26 25 24 23 22 Q4 VDDO Q5 GND Q6 VDDO Q7 GND CLK ICS8312 21 20 19 18 17 OE 9 10 11 12 13 14 15

📥 Download Datasheet

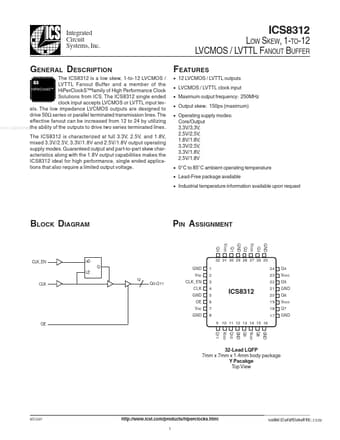

Preview of ICS8312 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS8312
Manufacturer
Integrated Circuit Systems
File Size
292.41 KB
Datasheet
ICS8312_IntegratedCircuitSystems.pdf
Description
1-TO-12 LVCMOS / LVTTL FANOUT BUFFER
