ICS83026I-01 - 1-TO-2 DIFFERENTIAL-TO-LVCMOS/LVTTL FANOUT BUFFER

Datasheet Summary

Description

The ICS83026I-01 is a low skew, 1-to-2 Differential-to-LVCMOS/LVTTL Fanout Buffer and HiPerClockS™ a member of the HiPerClockS ™ family of High Perfor mance Clock Solutions from I DT .

Features

  • Two LVCMOS / LVTTL outputs.
  • Differential CLK, nCLK input pair.
  • CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL.
  • Maximum output frequency: 350MHz.
  • Output skew: 15ps (maximum).
  • Part-to-part skew: 600ps (maximum).
  • Additive phase jitter, RMS: 0.03ps (typical).
  • Small 8 lead SOIC package saves board space.
  • 3.3V core, 3.3V, 2.5V or 1.8V output operating supply.

📥 Download Datasheet

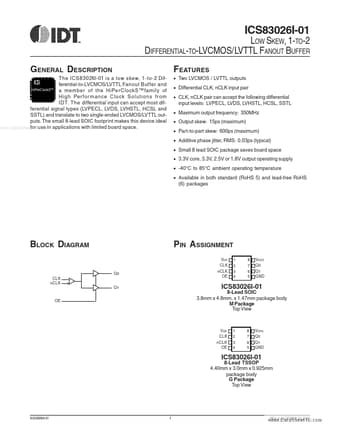

Datasheet preview – ICS83026I-01

Datasheet Details

Part number ICS83026I-01
Manufacturer Integrated Device Technology
File Size 273.69 KB
Description 1-TO-2 DIFFERENTIAL-TO-LVCMOS/LVTTL FANOUT BUFFER
Datasheet download datasheet ICS83026I-01 Datasheet
