TLE9351SJ - High speed CAN FD transceiver

Name: TLE9351SJ
SKU: TLE9351SJ-1578316

Infineon

The TLE9351SJ by Infineon is a High speed CAN FD transceiver. Below is the official datasheet preview.

Datasheet Details

Part number	TLE9351SJ
Manufacturer	Infineon
File Size	403.27 KB
Description	High speed CAN FD transceiver
Datasheet	TLE9351SJ-Infineon.pdf

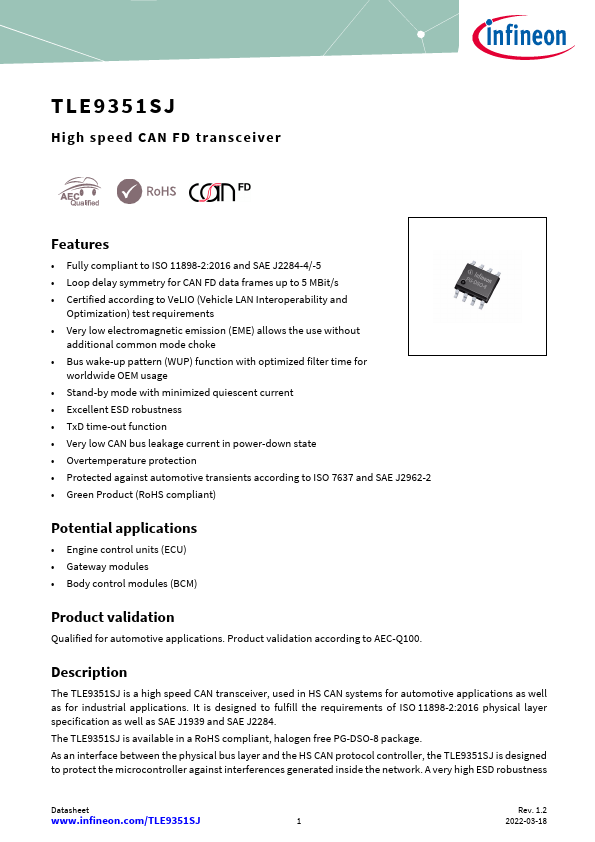

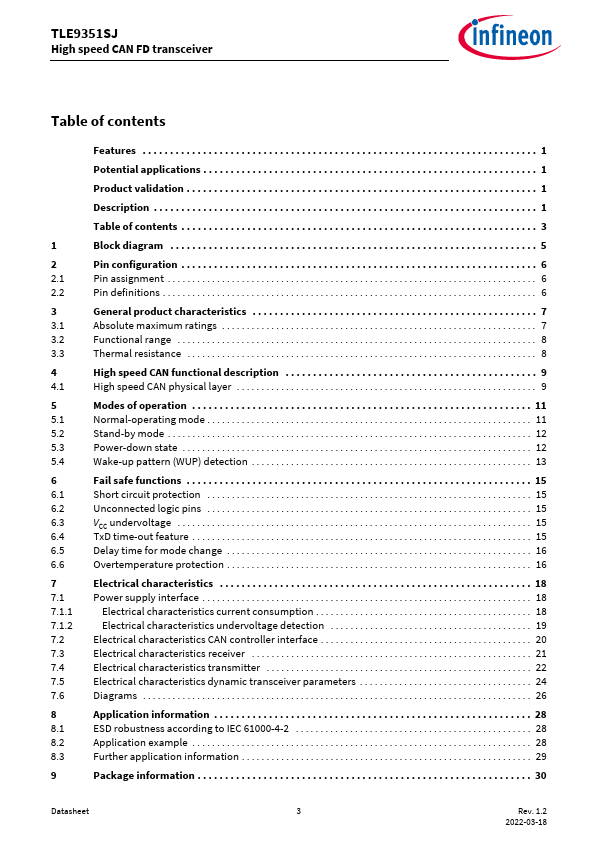

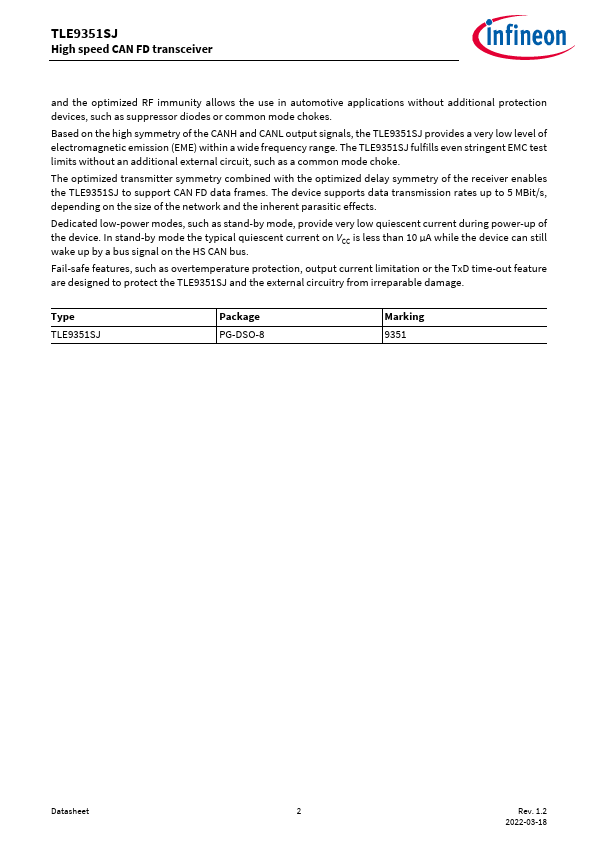

Additional preview pages of the TLE9351SJ datasheet.

The TLE9351SJ is a high speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications.

Fully compliant to ISO 11898-2:2016 and SAE J2284-4/-5.
Loop delay symmetry for CAN FD data frames up to 5 MBit/s.
Certified according to VeLIO (Vehicle LAN Interoperability and Optimization) test requirements.
Very low electromagnetic emission (EME) allows the use without additional common mode choke.
Bus wake-up pattern (WUP) function with optimized filter time for worldwide OEM usage.
Stand-by mode with minimized quiescent current.
