TLE9351BSJ - High speed CAN FD transceiver

Infineon

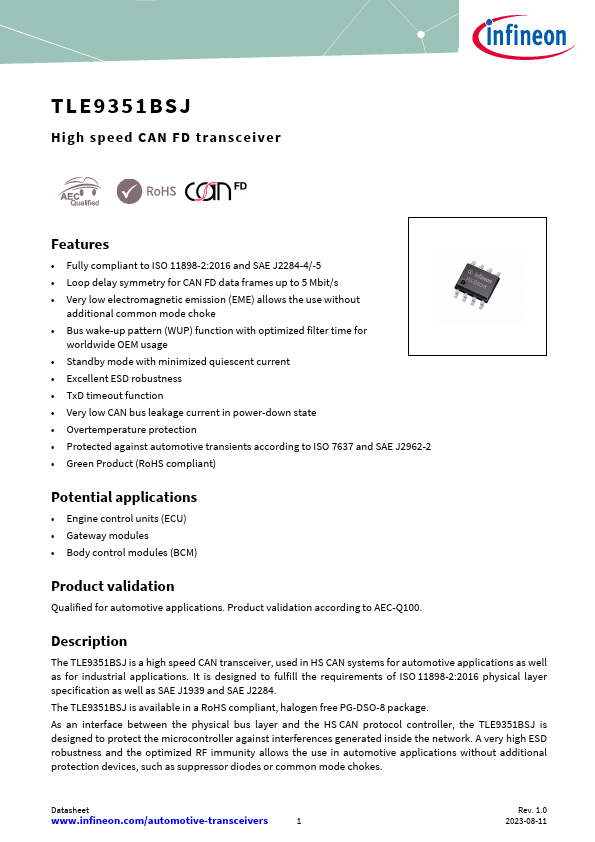

The TLE9351BSJ by Infineon is a High speed CAN FD transceiver. Below is the official datasheet preview.

Datasheet Details

Part number	TLE9351BSJ
Manufacturer	Infineon
File Size	394.40 KB
Description	High speed CAN FD transceiver
Datasheet	TLE9351BSJ-Infineon.pdf

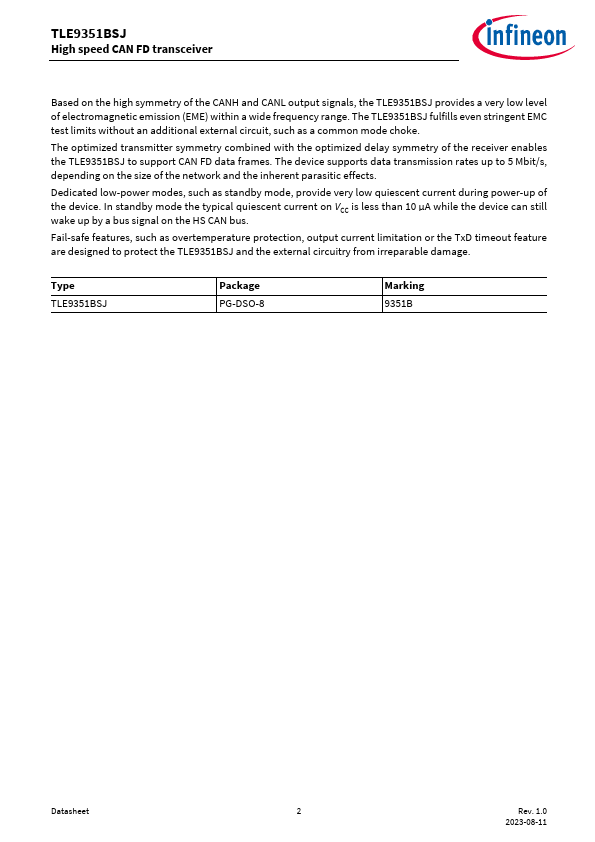

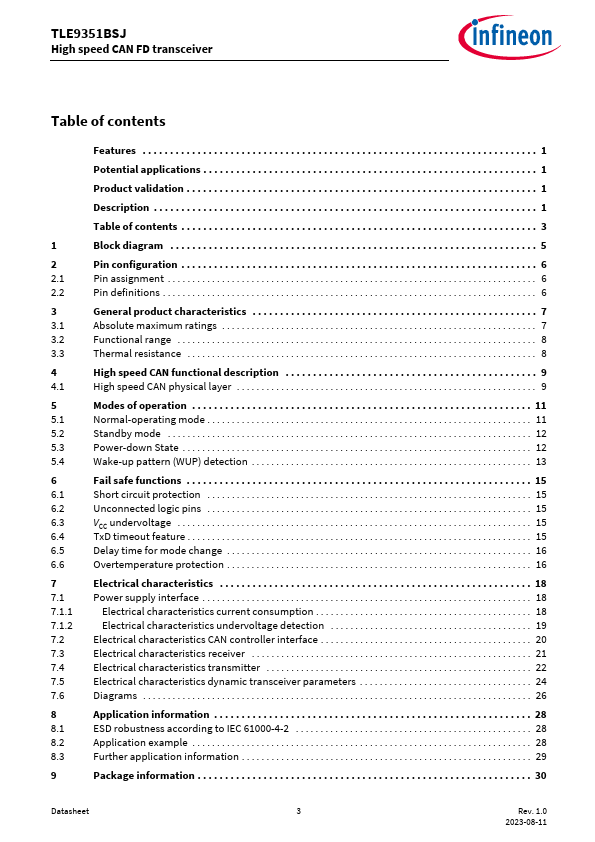

Additional preview pages of the TLE9351BSJ datasheet.

The TLE9351BSJ is a high speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications.

Fully compliant to ISO 11898-2:2016 and SAE J2284-4/-5.
Loop delay symmetry for CAN FD data frames up to 5 Mbit/s.
Very low electromagnetic emission (EME) allows the use without additional common mode choke.
Bus wake-up pattern (WUP) function with optimized filter time for worldwide OEM usage.
Standby mode with minimized quiescent current.
Excellent ESD robustness.
TxD timeout function.
Very low CAN bus leakage current in p.
