TLE9350BSJ - High speed CAN FD transceiver

Infineon

The TLE9350BSJ by Infineon is a High speed CAN FD transceiver. Below is the official datasheet preview.

Datasheet Details

Part number	TLE9350BSJ
Manufacturer	Infineon
File Size	371.29 KB
Description	High speed CAN FD transceiver
Datasheet	TLE9350BSJ-Infineon.pdf

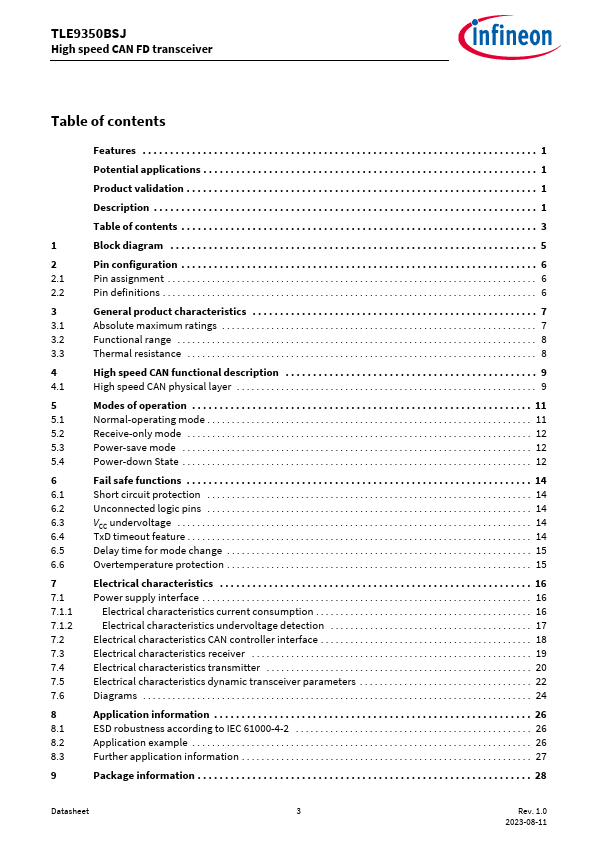

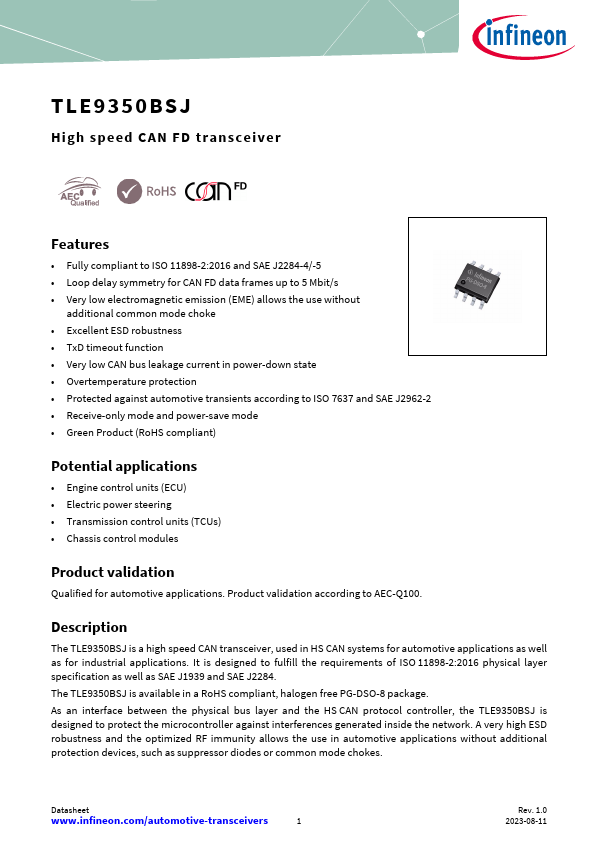

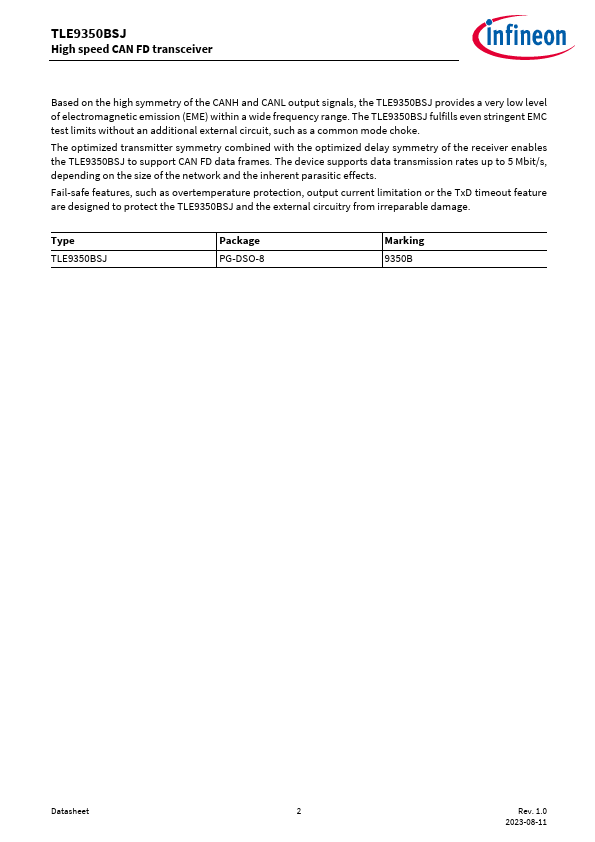

Additional preview pages of the TLE9350BSJ datasheet.

The TLE9350BSJ is a high speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications.

Fully compliant to ISO 11898-2:2016 and SAE J2284-4/-5.
Loop delay symmetry for CAN FD data frames up to 5 Mbit/s.
Very low electromagnetic emission (EME) allows the use without additional common mode choke.
Excellent ESD robustness.
TxD timeout function.
Very low CAN bus leakage current in power-down state.
Overtemperature protection.
Protected against automotive transients according to ISO 7637 and SAE J2962-2.
R.
