TLE9351BVSJ - High speed CAN FD transceiver

Infineon

The TLE9351BVSJ by Infineon is a High speed CAN FD transceiver. Below is the official datasheet preview.

Datasheet Details

Part number	TLE9351BVSJ
Manufacturer	Infineon
File Size	399.21 KB
Description	High speed CAN FD transceiver
Datasheet	TLE9351BVSJ-Infineon.pdf

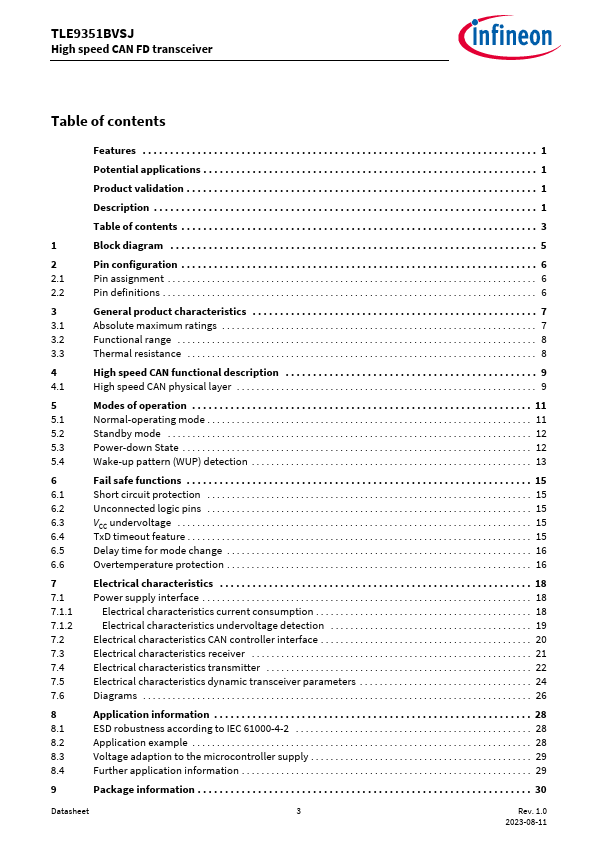

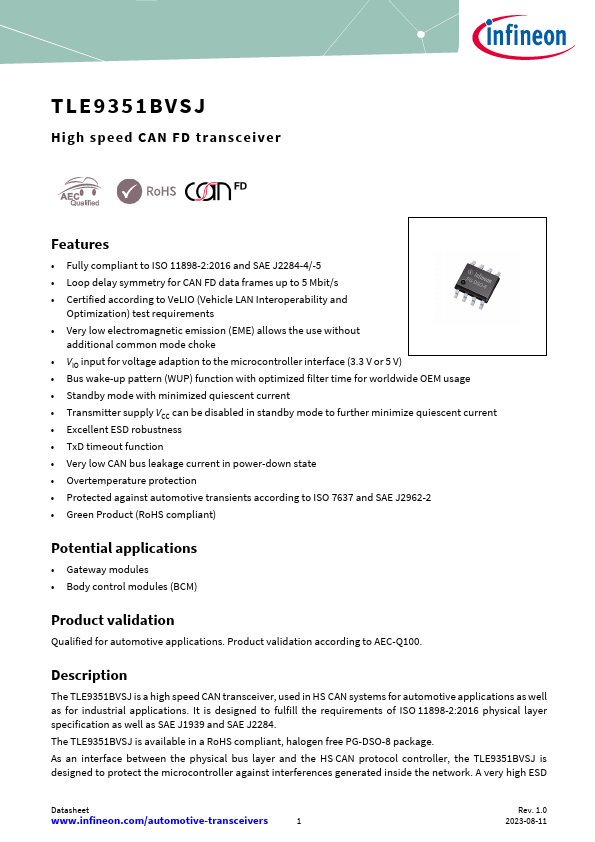

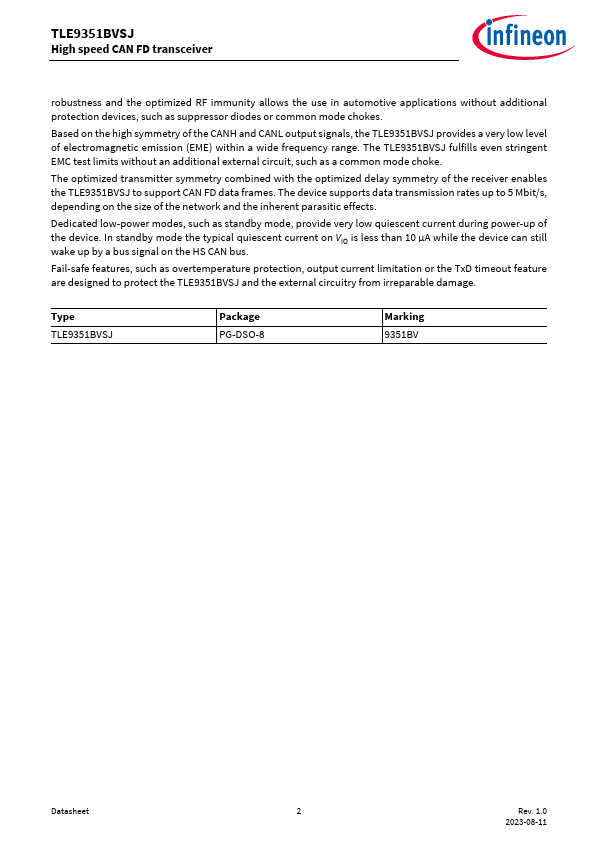

Additional preview pages of the TLE9351BVSJ datasheet.

The TLE9351BVSJ is a high speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications.

Fully compliant to ISO 11898-2:2016 and SAE J2284-4/-5.
Loop delay symmetry for CAN FD data frames up to 5 Mbit/s.
Certified according to VeLIO (Vehicle LAN Interoperability and Optimization) test requirements.
Very low electromagnetic emission (EME) allows the use without additional common mode choke.
VIO input for voltage adaption to the microcontroller interface (3.3 V or 5 V).
Bus wake-up pattern (WUP) function with optimized filter time.
