PTFC210202FC - Thermally-Enhanced High Power RF LDMOS FET

Name: PTFC210202FC
SKU: PTFC210202FC-969955

Infineon

📥 Download Datasheet

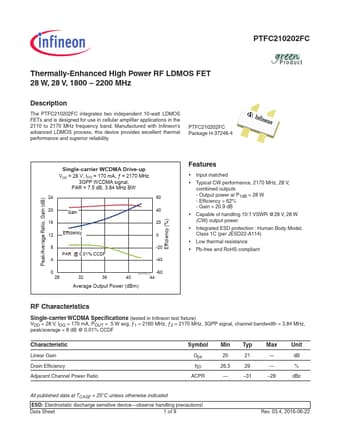

PTFC210202FC Datasheet Preview — Preview of PTFC210202FC PDF

Datasheet Details

Part number	PTFC210202FC
Manufacturer	Infineon
File Size	545.71 KB
Description	Thermally-Enhanced High Power RF LDMOS FET
Datasheet	PTFC210202FC-Infineon.pdf

PTFC210202FC Product details

Description

The PTFC210202FC integrates two independent 10-watt LDMOS FETs and is designed for use in cellular amplifier applications in the 2110 to 2170 MHz frequency band.

Features

Input matched.
Typical CW performance, 2170 MHz, 28 V, combined outputs - Output power at P1dB = 28 W - Efficiency = 62% - Gain = 20.9 dB.
Capable of handling 10:1 VSWR @28 V, 28 W (CW) output power.
Integrated ESD protection : Human Body Mode.
