PTFB183404F, PTFB183404E - High Power RF LDMOS Field Effect Transistors

Infineon

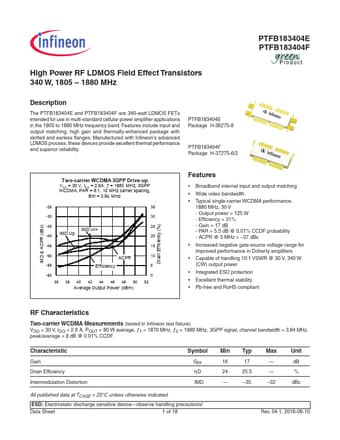

The PTFB183404F by Infineon is a High Power RF LDMOS Field Effect Transistors. Below is the official datasheet preview.

📥 Download Datasheet

PTFB183404F High Power RF LDMOS Field Effect Transistors by Infineon - Datasheet Preview — Official preview page of the **PTFB183404F** High Power RF LDMOS Field Effect Transistors datasheet (Infineon).

Datasheet Details

Part number	PTFB183404F, PTFB183404E
Manufacturer	Infineon
File Size	590.61 KB
Description	High Power RF LDMOS Field Effect Transistors
Datasheet	PTFB183404E-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: PTFB183404F, PTFB183404E. Please refer to the document for exact specifications by model.
Additional preview pages of the PTFB183404F datasheet.

PTFB183404F Product details

Description

The PTFB183404E and PTFB183404F are 340-watt LDMOS FETs intended for use in multi-standard cellular power amplifier applications in the 1805 to 1880 MHz frequency band.

Features

include input and output matching, high gain and thermally-enhanced package with slotted and earless flanges. Manufactured with Infineon's advanced LDMOS process, these devices provide excellent thermal performance and superior reliability. PTFB183404E Package H-36275-8 PTFB183404F Package H-37275-6/2 IMD & ACPR (dBc) Drain Efficiency (%) Two-carrier WCDMA 3GPP Drive-up VDD = 30 V, IDQ = 2.6A, ƒ = 1880 MHz, 3GPP WCDMA, PAR = 8:1, 10 MHz carrier spacing, BW = 3.84 MHz -25 35 -30 30 -35 IMD.
