PTFB093608SV - Thermally-Enhanced High Power RF LDMOS FET

Infineon

Datasheet Details

Part number	PTFB093608SV
Manufacturer	Infineon
File Size	563.21 KB
Description	Thermally-Enhanced High Power RF LDMOS FET
Datasheet	PTFB093608SV-Infineon.pdf

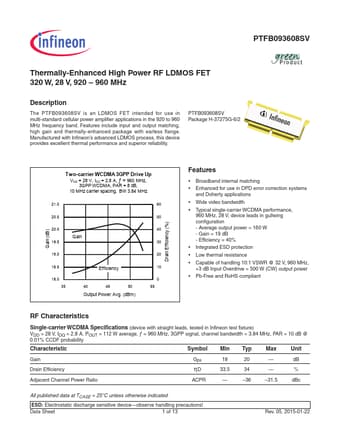

The PTFB093608SV is an LDMOS FET intended for use in multi-standard cellular power amplifier applications in the 920 to 960 MHz frequency band.

include input and output matching, high gain and thermally-enhanced package with earless flange. Manufactured with Infineon’s advanced LDMOS process, this device provides excellent thermal performance and superior reliability. PTFB093608SV Package H-37275G-6/2 Gain (dB) Drain Efficiency (%) Two-carrier WCDMA 3GPP Drive Up VDD = 28 V, IDQ = 2.8 A, ƒ = 960 MHz, 3GPP WCDMA, PAR = 8 dB, 10 MHz carrier spacing, BW 3.84 MHz 21.0 60 20.5 50 20.0 Gain 19.5 40 30 19.0 20 18.5 18.0 35 Efficie.
