PTFA041501HL, PTFA041501GL Datasheet - Infineon

PTFA041501HL Thermally-Enhanced High Power RF LDMOS FETs

The PTFA041501GL and PTFA041501HL are 150-watt LDMOS FETs designed for ultra-linear CDMA power amplifier applications. They are available in thermally-enhanced plastic open-cavity packages with copper flanges. Manufactured with Infineon's advanced LDMOS process, these devices provide excellent therm.

PTFA041501HL Features

* 45 Thermally-enhanced plastic open-cavity (EPOC™) packages with copper flanges, Pb-free and RoHS compliant Broadband internal matching Typical CDMA performance at 470 MHz, 28 V - Average output power = 60 W - Linear Gain = 21 dB - Efficiency = 41% Typical CW performance, 470 MHz, 28 V - O

PTFA041501GL_Infineon.pdf

This datasheet PDF includes multiple part numbers: PTFA041501HL, PTFA041501GL. Please refer to the document for exact specifications by model.

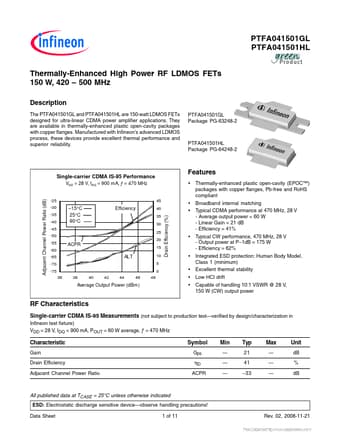

PTFA041501HL Datasheet Preview Page 2 PTFA041501HL Datasheet Preview Page 3

Datasheet Details

Part number:

PTFA041501HL, PTFA041501GL

Manufacturer:

Infineon ↗

File Size:

445.02 KB

Description:

Thermally-enhanced high power rf ldmos fets.

Note:

This datasheet PDF includes multiple part numbers: PTFA041501HL, PTFA041501GL.
Please refer to the document for exact specifications by model.
