IRLR3410, IRLR3410PbF Power MOSFET

IRLR3410 Description

IRLR3410PbF IRLU3410PbF .
Fifth Generation HEXFET® Power MOSFET utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area.

IRLR3410 Features

* Logic Level Gate Drive
* Ultra Low On-Resistance
* Surface Mount (IRLR3410)
* Straight Lead (IRLU3410)
* Advances Process Technology
* Fast Switching
* Fully Avalanche Rated

IRLR3410 Applications

* The D-PAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. HEXFET® Power MOSFET

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRLR3410, IRLR3410PbF. Please refer to the document for exact specifications by model.

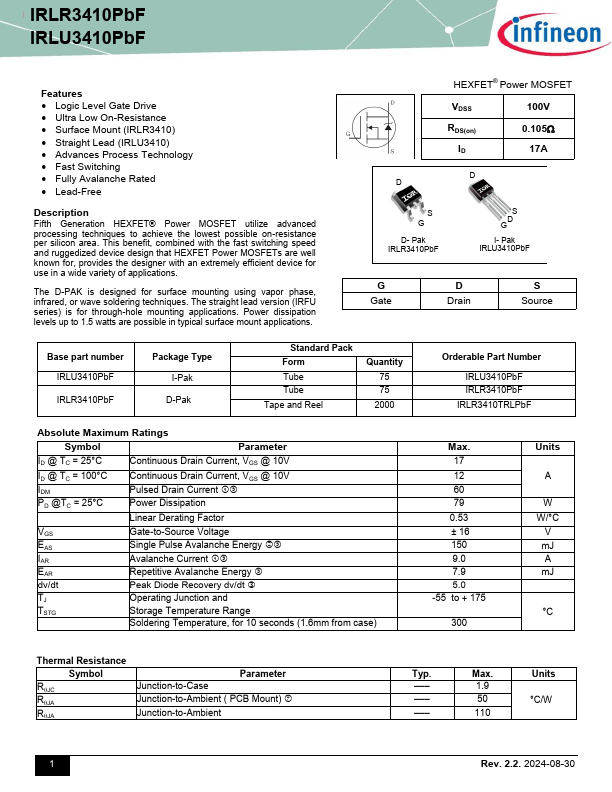

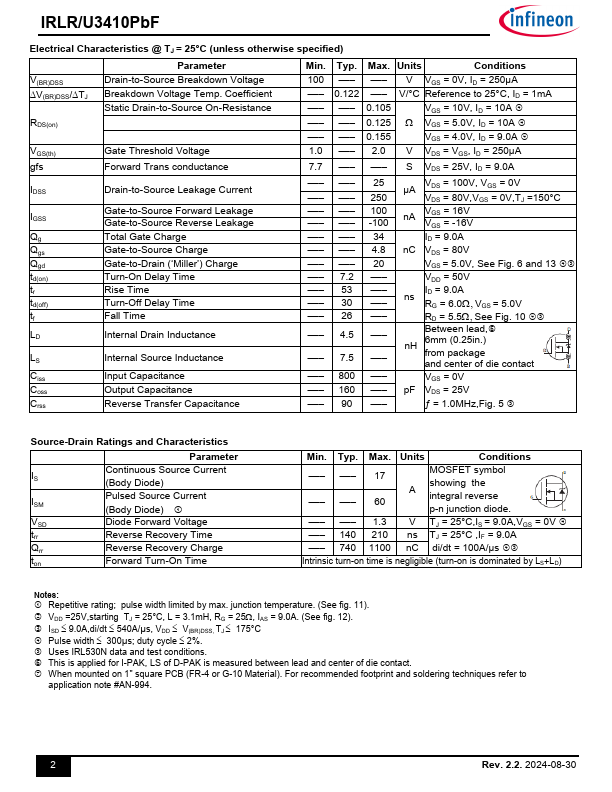

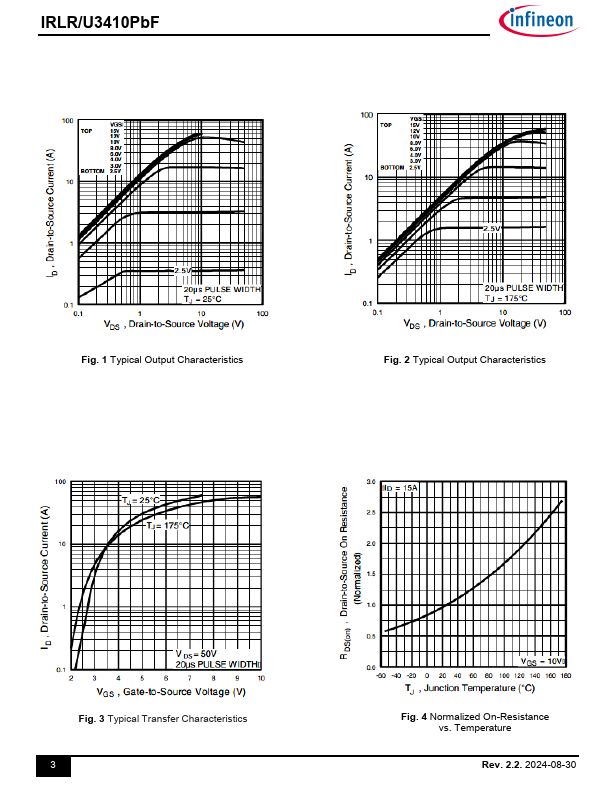

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRLR3410, IRLR3410PbF
Manufacturer
Infineon ↗
File Size
1.17 MB
Datasheet
IRLR3410PbF-Infineon.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRLR3410, IRLR3410PbF.
Please refer to the document for exact specifications by model.
