IDWD80G200C5 - 2000V Schottky diode

Infineon

📥 Download Datasheet

IDWD80G200C5 Datasheet Preview — Preview of IDWD80G200C5 PDF

Datasheet Details

Part number	IDWD80G200C5
Manufacturer	Infineon
File Size	1.06 MB
Description	2000V Schottky diode
Datasheet	IDWD80G200C5-Infineon.pdf

IDWD80G200C5 Product details

Description

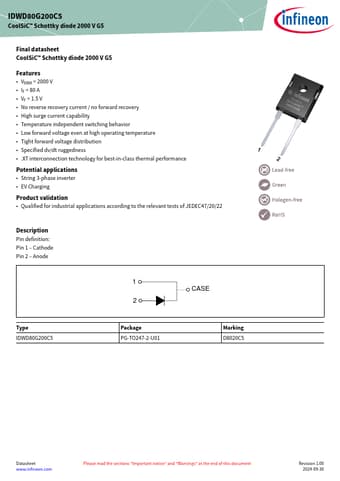

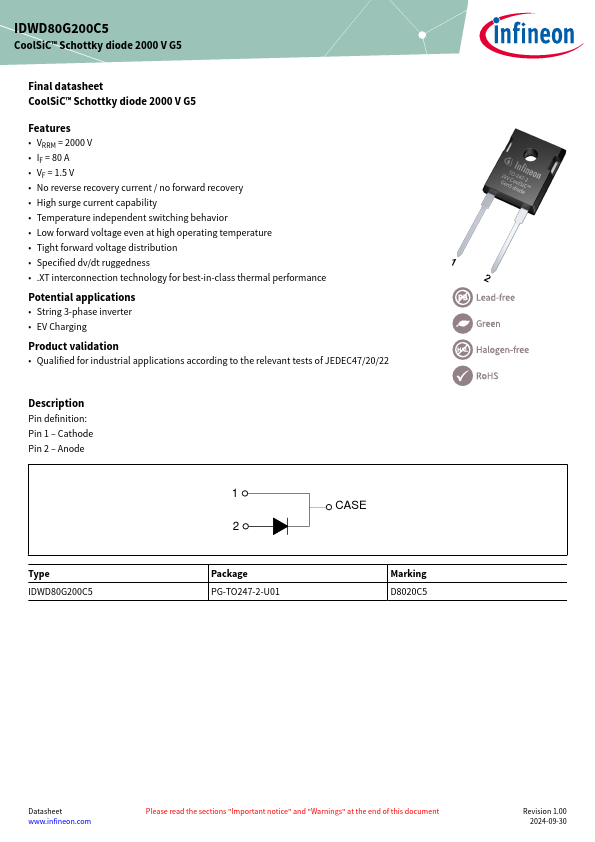

Pin definition: Pin 1 Cathode Pin 2 Anode SiC Diode Gen5 2021-10-27 restricted 1 CASE 2 Type IDWD80G200C5 Package PG-TO247-2-U01 Marking D8020C5 Copyright © Infineon Techno Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2024-09-30 IDWD80G200C5 CoolSiC™ Schottky diode 2000 V G5 Table of contents Table of contents Description

Features

VRRM = 2000 V.
IF = 80 A.
VF = 1.5 V.
No reverse recovery current / no forward recovery.
High surge current capability.
Temperature independent switching behavior.
Low forward voltage even at high operating temperature.
Tight forward voltage distribution.
Specified dv/dt ruggedness.
. XT interconnection technology for best-in-class thermal performance Potential.
