ESD259-B1-W0201 - Bi-directional ESD protection device

Product Overview

📥 Download Datasheet

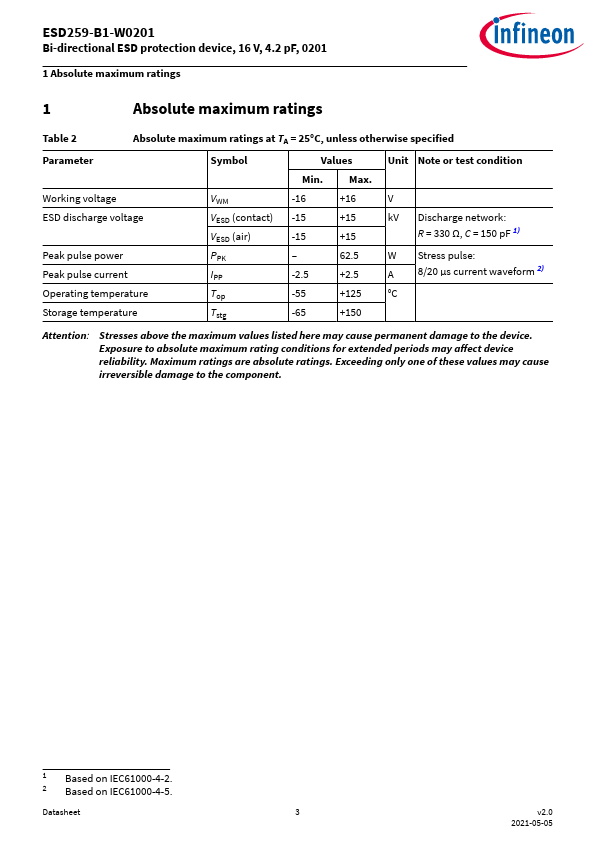

Datasheet preview – ESD259-B1-W0201

Datasheet Details

Part number ESD259-B1-W0201
Manufacturer Infineon
File Size 774.05 KB
Description Bi-directional ESD protection device
Datasheet download datasheet ESD259-B1-W0201 Datasheet
Additional preview pages of the ESD259-B1-W0201 datasheet.

Product details

Description

This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance. ESD / transient protection according to: - IEC61000-4-2 (ESD): ±15 kV (air) / ±15 kV (contact) - IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns) - IEC61000-4-5 (Surge): ±2.5 A (8/20 μs) Bi-directional maximum working voltage: VWM = ±16 V Line capacitance: CL = 4.2 pF at f = 1 MHz Clamping voltage
