ESD24R - Transient Voltage Suppressors

SeCoS

📥 Download Datasheet

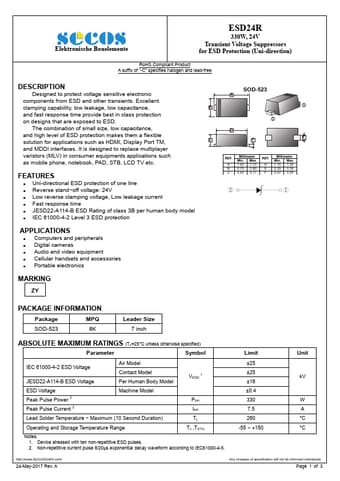

ESD24R Datasheet Preview — Preview of ESD24R PDF

Datasheet Details

Part number	ESD24R
Manufacturer	SeCoS
File Size	403.78 KB
Description	Transient Voltage Suppressors
Datasheet	ESD24R-SeCoS.pdf

ESD24R Product details

Description

Designed to protect voltage sensitive electronic SOD-523 A components from ESD and other transients.Excellent clamping capability, low leakage, low capacitance, B and fast response time provide best in class protection on designs that are exposed to ESD.The combination of small size, low capacitance, D and high level of ESD protection makes them a flexible E solution for applications such as HDMI, Display Port TM, C F and MDDI interfaces.It is designed to replace multiplayer va

Features

REF. A B C Millimeter Min. Max. 1.50 1.70 0.70 0.90 0.50 0.77 REF. D E F Millimeter Min. Max. 1.10 1.30 0.25 0.35 0.07 0.20 Uni-directional ESD protection of one line Reverse stand.
off voltage: 24V ќ ћ Low reverse clamping voltage, Low leakage current Fast response time JESD22-A114-B ESD Rating of class 3B per human body model IEC 61000-4-2 Level 3 ESD protection.
