Datasheet Details
| Part number | ESD242-B1-W01005 |
|---|---|
| Manufacturer | Infineon |
| File Size | 558.67 KB |
| Description | Bi-directional ESD protection device |
| Datasheet |
 ESD242-B1-W01005-Infineon.pdf
|
| Part number | ESD242-B1-W01005 |
|---|---|
| Manufacturer | Infineon |
| File Size | 558.67 KB |
| Description | Bi-directional ESD protection device |
| Datasheet |
ESD242-B1-W01005-Infineon.pdf
|

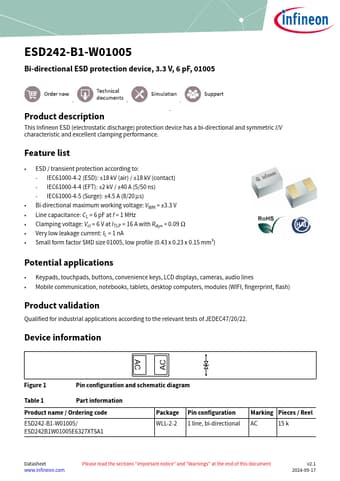

This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance. ESD / transient protection according to: - IEC61000-4-2 (ESD): ±18 kV (air) / ±18 kV (contact) - IEC61000-4-4 (EFT): ±2 kV / ±40 A (5/50 ns) - IEC61000-4-5 (Surge): ±4.5 A (8/20 μs) Bi-directional maximum working voltage: VWM = ±3.3 V Line capacitance: CL = 6 pF at f = 1 MHz Clamping voltage: V
