Datasheet Details
| Part number | ESD249-B1-W0201 |
|---|---|
| Manufacturer | Infineon |
| File Size | 758.18 KB |
| Description | Bi-directional ESD protection device |
| Datasheet |
 ESD249-B1-W0201-Infineon.pdf
|
| Part number | ESD249-B1-W0201 |
|---|---|
| Manufacturer | Infineon |
| File Size | 758.18 KB |
| Description | Bi-directional ESD protection device |
| Datasheet |
ESD249-B1-W0201-Infineon.pdf
|

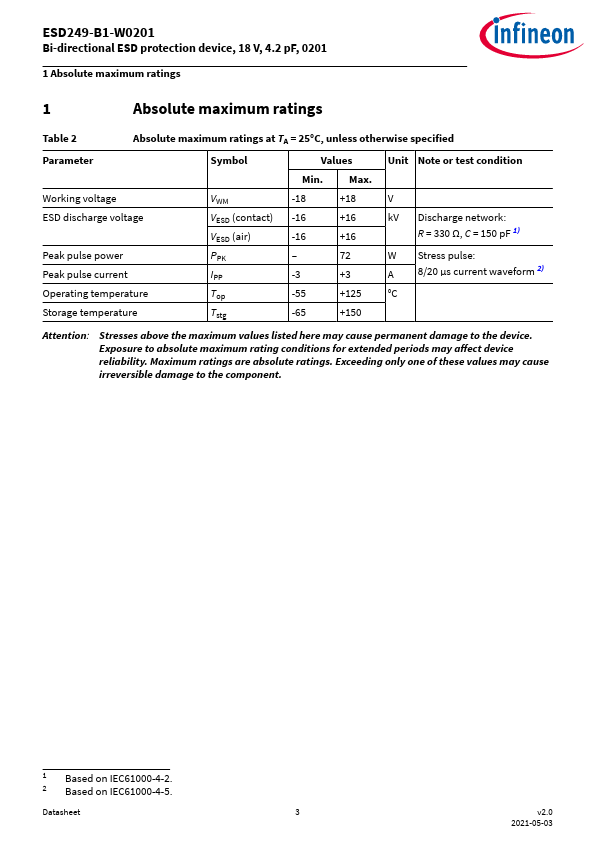

This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance. ESD / transient protection according to: - IEC61000-4-2 (ESD): ±16 kV (air) / ±16 kV (contact) - IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns) - IEC61000-4-5 (Surge): ±3 A (8/20 μs) Bi-directional maximum working voltage: VWM = ±18 V Line capacitance: CL = 4.2 pF at f = 1 MHz Clamping voltage:
