ESD251-B1-W0201 - Bi-directional ESD protection device

Product Overview

📥 Download Datasheet

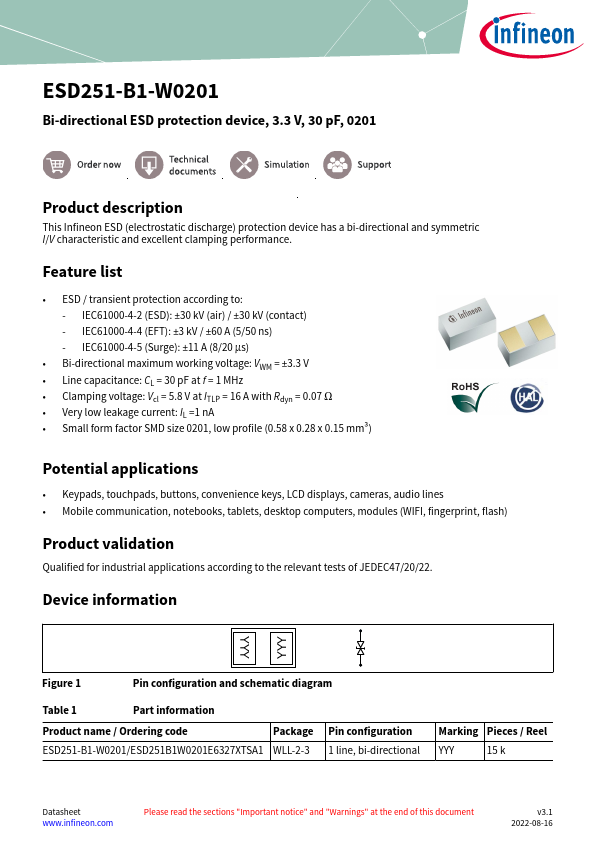

Datasheet preview – ESD251-B1-W0201

Datasheet Details

Part number ESD251-B1-W0201
Manufacturer Infineon
File Size 855.87 KB
Description Bi-directional ESD protection device
Datasheet download datasheet ESD251-B1-W0201 Datasheet

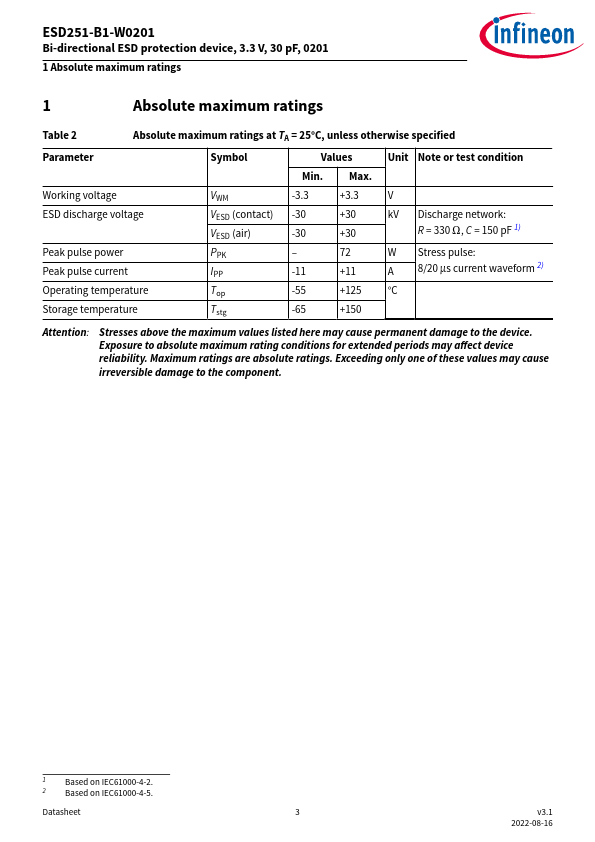

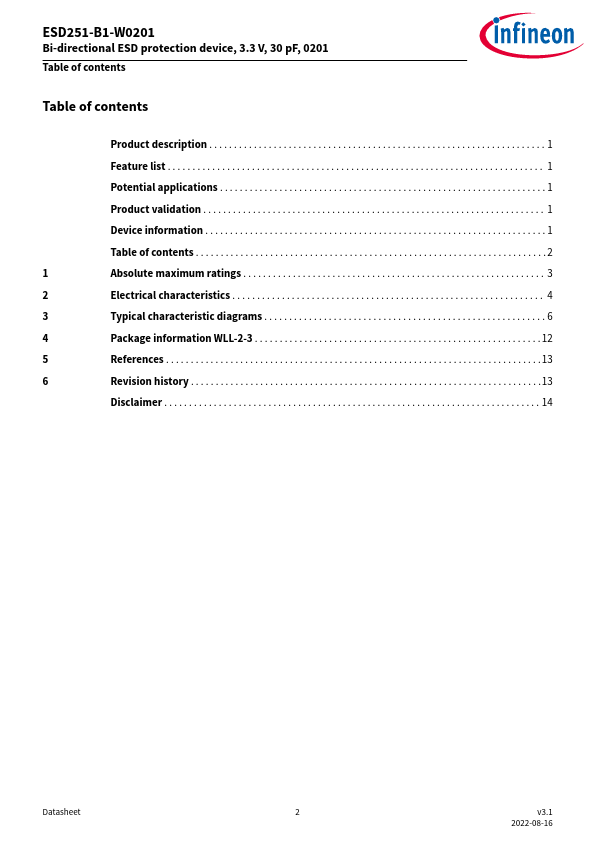

Additional preview pages of the ESD251-B1-W0201 datasheet.

Product details

Description

This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance. ESD / transient protection according to: - IEC61000-4-2 (ESD): ±30 kV (air) / ±30 kV (contact) - IEC61000-4-4 (EFT): ±3 kV / ±60 A (5/50 ns) - IEC61000-4-5 (Surge): ±11 A (8/20 μs) Bi-directional maximum working voltage: VWM = ±3.3 V Line capacitance: CL = 30 pF at f = 1 MHz Clamping voltage: V
