ESD203-B1-02 - Transient Voltage Suppressor Diodes

Infineon

📥 Download Datasheet

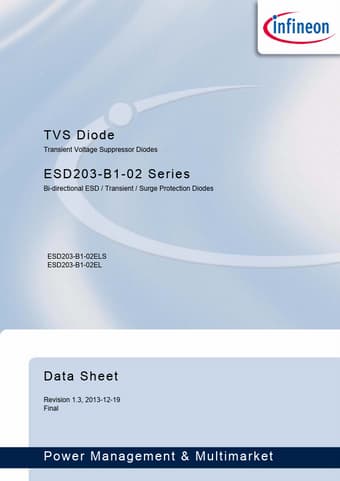

ESD203-B1-02 Datasheet Preview — Preview of ESD203-B1-02 PDF

Datasheet Details

Part number	ESD203-B1-02
Manufacturer	Infineon
File Size	642.74 KB
Description	Transient Voltage Suppressor Diodes
Datasheet	ESD203-B1-02-Infineon.pdf

ESD203-B1-02 Product details

Description

Pin 1 Pin 2 Pin 1 Pin 1 marking (lasered) Pin 1 TSLP -2 Pin 2 Pin 2 TSSLP - 2 a) Pin configuration b) Schematic diagram Figure 1-1 Pin Configuration and Schematic Diagram P G-TS (S)LP -2_Dual_Diode_S erie_P inConf_and_S c hematic Diag.v s d Table 1-1 Ordering Information Type Package ESD203-B1-02ELS TSSLP-2-4 ESD203-B1-02EL TSLP-2-20 Configuration 1 line, bi-directional 1 line, bi--directional Marking code H H Final Data Sheet 3 Revision 1.3, 2013-12-19 2 Characteristics E

Features

ESD/Transient/Surge protection of one data / Vbus line exceeding standard:.
IEC61000-4-2 (ESD): ±30 kV (air/contact discharge).
IEC61000-4-4 (EFT): ±50 A (5/50 ns).
IEC61000-4-5 (surge): ±5 A (8/20 μs).
Bi-directional symmetrical working voltage: VRWM = ±13.2 V.
Low capacitance: CL = 6 pF (typ. ).
Very low ESD clamping voltage, very low dynamic resistance: RDYN = 0.29 Ω (typ. ).
Pb-free (RoHS compliant) and halogen free packa.
