CYPD7299, CYPD7291 CCG7D Automotive USB Type-C and Buck-boost Controller

CYPD7299 Description

CYPD7291, CYPD7299 EZ-PD™ CCG7D Automotive USB dual-port Type-C with PD and buck-boost controller General .
EZ-PD™ CCG7D is a highly integrated dual-port USB Type-C Power Delivery (PD) solution with integrated buck-boost controllers.

CYPD7299 Features

* on the VBUS. EZ-PD™ CCG7D supports a wide input voltage range (4 V
* 24 V with 40-V tolerance) and programmable switching frequency (150 kHz
* 600 kHz) in an integrated PD solution. EZ-PD™ CCG7D is the most programmable USB PD solution with an on-chip 32-bit Arm® Cortex®-M0 processor, 12

CYPD7299 Applications

* such as infotainment head unit charger, rear seat chargers as well as rear seat entertainment. Integration offered by EZ-PD™ CCG7D not only reduces the bill-of-materials (BOM) but also provides a footprint optimized solution for automotive charging needs. It also includes hardware-controlled protect

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CYPD7299, CYPD7291. Please refer to the document for exact specifications by model.

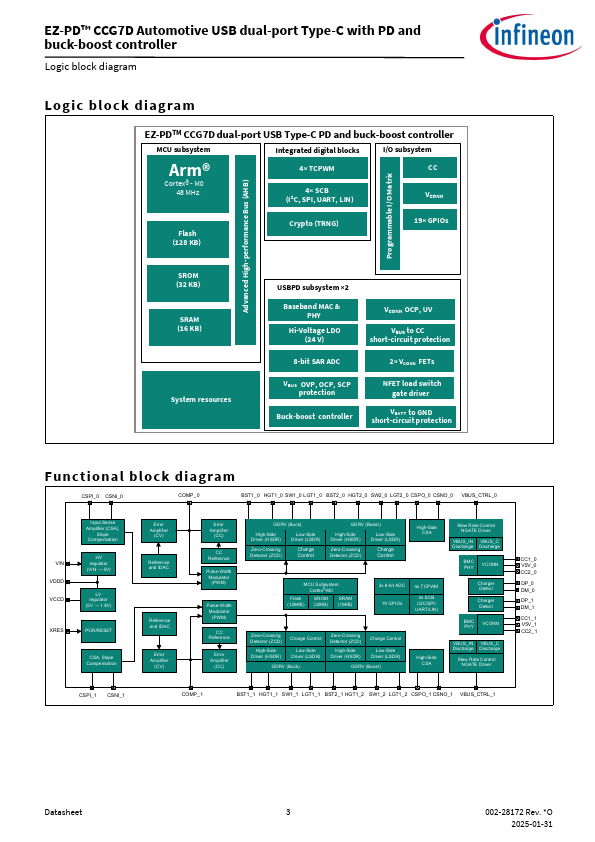

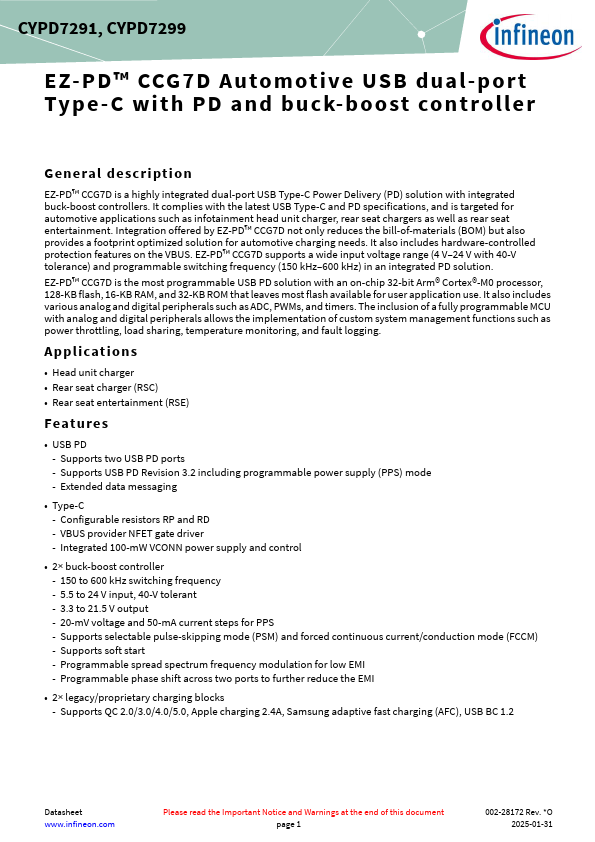

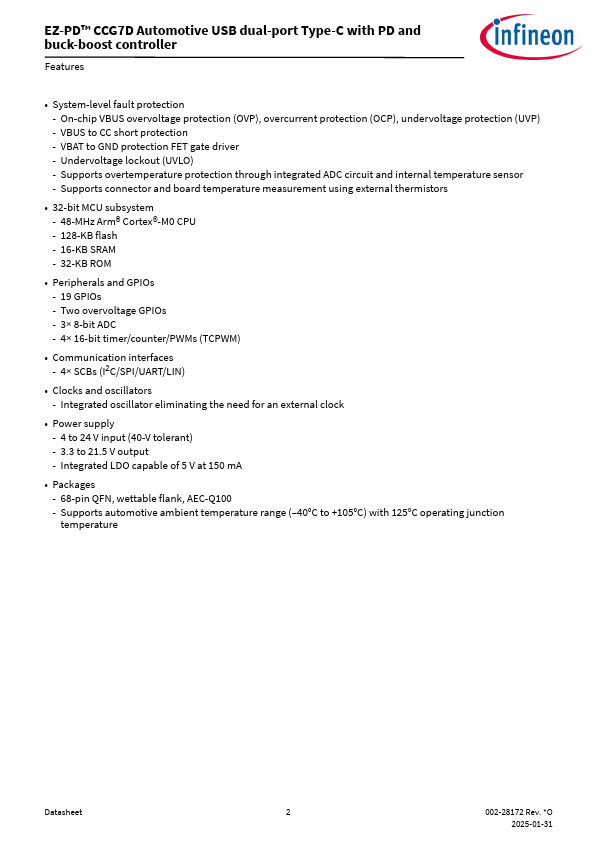

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CYPD7299, CYPD7291
Manufacturer
Infineon ↗
File Size
543.41 KB
Datasheet
CYPD7291-Infineon.pdf
Description
CCG7D Automotive USB Type-C and Buck-boost Controller
Note
This datasheet PDF includes multiple part numbers: CYPD7299, CYPD7291.
Please refer to the document for exact specifications by model.
