CYPD2803 - CMG2 USB Type-C EMCA controller

Description

(PD) standards for electronically marked Type-C thunderbolt and non-thunderbolt passive cable applications.

Features

  • Type-C support and USB-PD support - Supports USB Power Delivery specification revision 3.1, v1.4 and USB Type-C Specification revision 2.1 (including support for the revised minimum VCONN operating voltage of 3 V) - Supports USB4, TBT4 and extended power range (EPR) PD protocol - Integrated high-voltage protection on CC, VCONN1, and VCONN2 pins to protect against accidental shorts to the VBUS pin on the Type-C connector up to 54 V - 47-byte storage programmable over Type-C interface f.

📥 Download Datasheet

Datasheet Details

Part number CYPD2803
Manufacturer Infineon
File Size 160.72 KB
Description CMG2 USB Type-C EMCA controller
Datasheet download datasheet CYPD2803 Datasheet

📁 Similar Datasheet

  • CYPD2103 - Type-C Port Controller (Cypress Semiconductor)
  • CYPD2104 - Type-C Port Controller (Cypress Semiconductor)
  • CYPD2119 - Type-C Port Controller (Cypress Semiconductor)
  • CYPD2120 - Type-C Port Controller (Cypress Semiconductor)
  • CYPD2121 - Type-C Port Controller (Cypress Semiconductor)
  • CYPD2122 - Type-C Port Controller (Cypress Semiconductor)
  • CYPD2125 - Type-C Port Controller (Cypress Semiconductor)
  • CYPD2134 - Type-C Port Controller (Cypress Semiconductor)
  • CYPD1103 - USB Type-C Port Controller (Cypress Semiconductor)
  • CYPD1104-35FNXIT - USB Type-C Port Controller (Cypress Semiconductor)
Other Datasheets by Infineon
  • CYPD3171 - CCG3PA Consumer USB Type-C port controller
  • CYPD3174 - CCG3PA Consumer USB Type-C port controller
  • CYPD3175 - CCG3PA Consumer USB Type-C port controller
  • CYPD6129 - CCG6_CFP USB-C Power Delivery (PD) controller
  • CYPD6139 - CCG6_CFP USB-C Power Delivery (PD) controller
  • CYPD6229 - CCG6_CFP USB-C Power Delivery (PD) controller
  • CYPD6239 - CCG6_CFP USB-C Power Delivery (PD) controller
  • CYPD7271 - CCG7DC dual-port USB-C power delivery and DC-DC controller

Full PDF Text Transcription

Click to expand full text

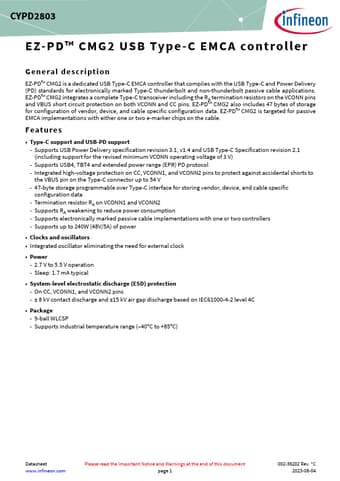

CYPD2803 EZ-PD™ CMG2 USB Type-C EMCA controller General description EZ-PD™ CMG2 is a dedicated USB Type-C EMCA controller that complies with the USB Type-C and Power Delivery (PD) standards for electronically marked Type-C thunderbolt and non-thunderbolt passive cable applications. EZ-PD™ CMG2 integrates a complete Type-C transceiver and VBUS short circuit protection on both VCONN and iCnCclpuidnisn.gEtZh-ePDRA™tCerMmGi2naatlisoonirnecsliusdtoerss on the VCONN pins 47 bytes of storage for configuration of vendor, device, and cable specific configuration data. EZ-PD™ CMG2 is targeted for passive EMCA implementations with either one or two e-marker chips on the cable. Features • Type-C support and USB-PD support - Supports USB Power Delivery specification revision 3.1, v1.
