CYPD6129 - CCG6_CFP USB-C Power Delivery (PD) controller

Product Overview

Infineon

Part number	CYPD6129
Manufacturer	Infineon
File Size	870.54 KB
Description	CCG6_CFP USB-C Power Delivery (PD) controller
Datasheet	CYPD6129 Datasheet

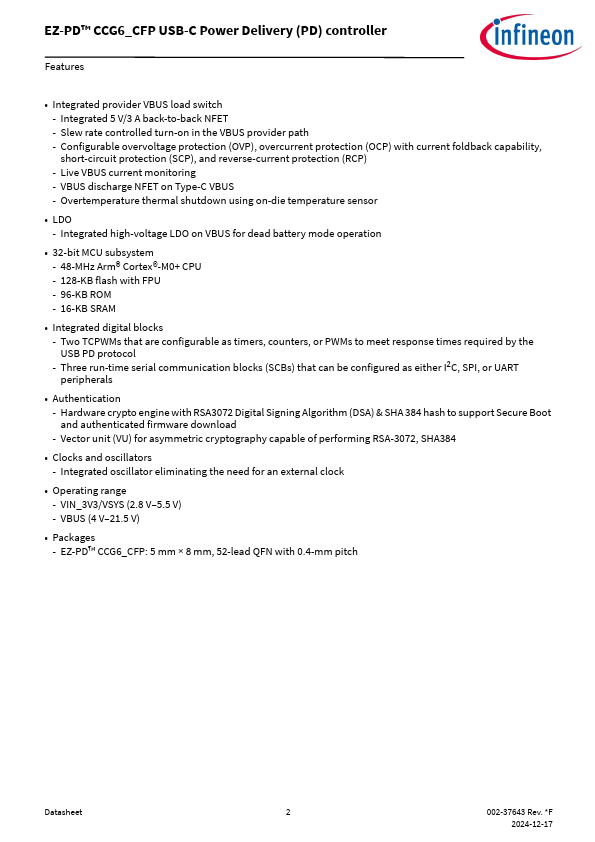

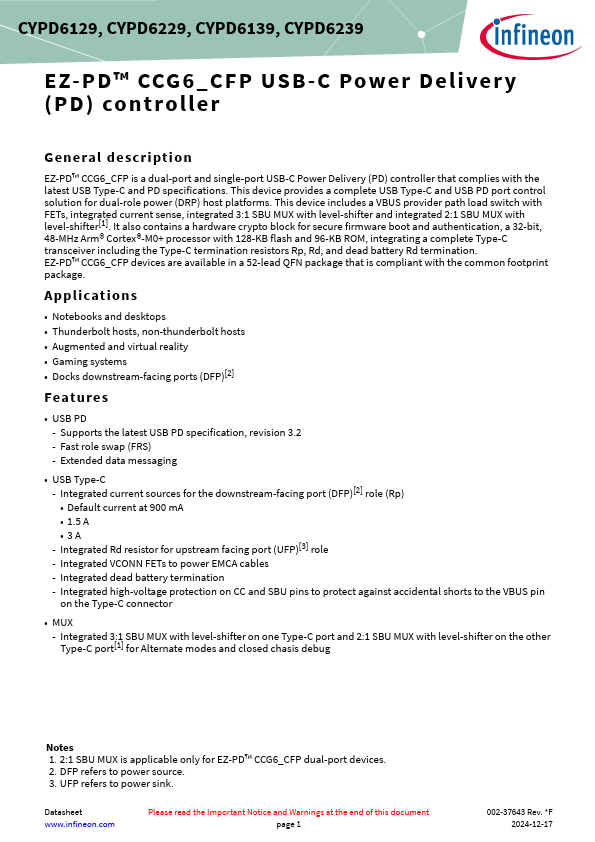

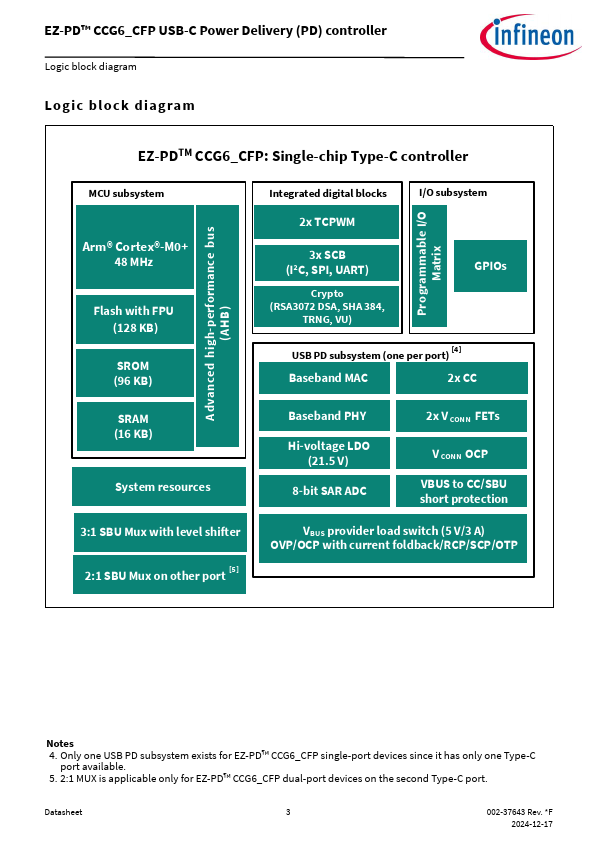

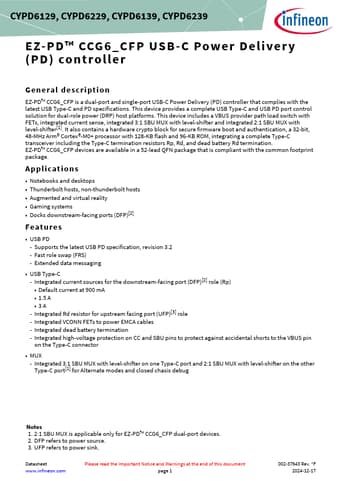

Additional preview pages of the CYPD6129 datasheet.

EZ-PD™ CCG6_CFP is a dual-port and single-port USB-C Power Delivery (PD) controller that complies with the latest USB Type-C and PD specifications.

USB PD - Supports the latest USB PD specification, revision 3.2 - Fast role swap (FRS) - Extended data messaging.
USB Type-C - Integrated current sources for the downstream-facing port (DFP)[2] role (Rp).
Default current at 900 mA.
1.5 A.
3A - Integrated Rd resistor for upstream facing port (UFP)[3] role - Integrated VCONN FETs to power EMCA cables - Integrated dead battery termination - Integrated high-voltage protection on CC and SBU pins to prot.
