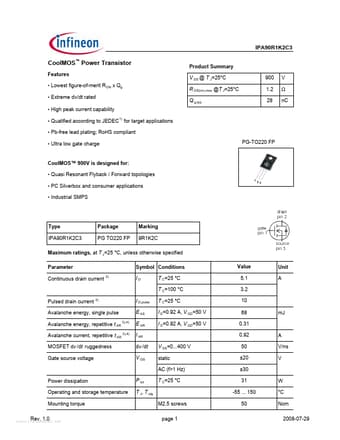

IPA90R1K2C3
CoolMOS™ Power Transistor
Features • Lowest figure-of-merit R ON x Qg • Extreme dv/dt rated • High peak current capability • Qualified according to JEDEC1) for target applications • Pb-free lead plating; RoHS compliant • Ultra low gate charge
Product Summary V DS @ T J=25°C R DS(on),max @T J=25°C Q g,typ 900 1.2 28 V Ω nC
PG-TO220 FP
CoolMOS™ 900V is designed for: • Quasi Resonant Flyback / Forward topologies • PC Silverbox and consumer applications • Industrial SMPS
Type IPA90R1K2C3
Package PG TO220 FP
Marking 9R1K2C
Maximum ratings, at T J=25 °C, unless otherwise specified Parameter Continuous drain current
2)
Symbol Conditions ID T C=25 °C T C=100 °C
Value 5.1 3.2 10 68 0.31 0.
