2SK2333 - N-Channel MOSFET Transistor

📥 Download Datasheet

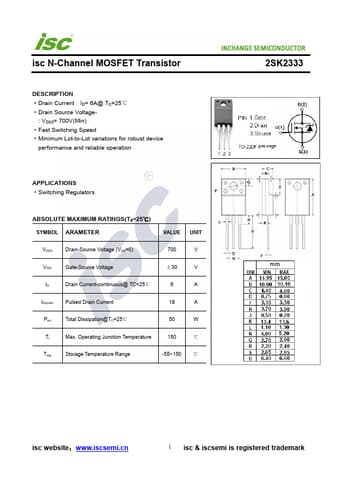

Preview of 2SK2333 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK2333
Manufacturer Inchange Semiconductor
File Size 213.10 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK2333-InchangeSemiconductor.pdf

2SK2333 Product details

Description

Drain Current ID= 6A@ TC=25℃ Drain Source Voltage- : VDSS= 700V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching Regulators ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 700 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 6 A ID(puls) Pulsed Drain Current 18 A Ptot Total Dissipation@TC=25℃ 50 W Tj
