2SK2388 - N-Channel MOSFET Transistor

Description

Drain Current ID= 3.5A@ TC=25℃ Drain Source Voltage- : VDSS= 600V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching Regulators DC-DC Converter, Motor Control ABSOLUTE MAXIMUM RATING

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2388 Silicon N-Channel MOSFET Toshiba
2SK2380 Silicon N-Channel MOSFET Panasonic Semiconductor
2SK2381 Silicon N-Channel MOSFET Toshiba Semiconductor
2SK2381 N-Channel MOSFET VBsemi
2SK2382 N-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Inchange Semiconductor

Part Number Description
2SK2386 N-Channel MOSFET Transistor
2SK2389 N-Channel MOSFET Transistor
2SK2328 N-Channel MOSFET Transistor
2SK2333 N-Channel MOSFET Transistor
2SK2350 N-Channel MOSFET Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

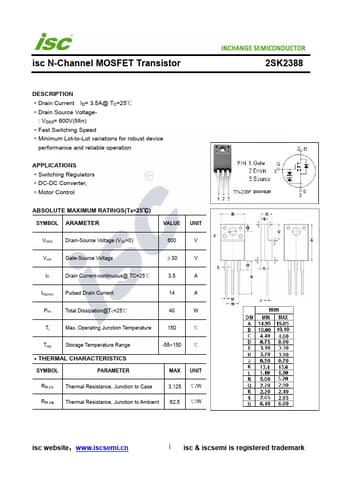

isc N-Channel MOSFET Transistor DESCRIPTION ·Drain Current ID= 3.5A@ TC=25℃ ·Drain Source Voltage- : VDSS= 600V(Min) ·Fast Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching Regulators ·DC-DC Converter, ·Motor Control ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 3.5 A ID(puls) Pulsed Drain Current 14 A Ptot Total Dissipation@TC=25℃ 40 W Tj Max. Operating Junction Temperature 150 ℃ Tstg Storage Temperature Range ·THERMAL CHARACTERISTICS SYMBOL PARAMETER -55~150 ℃ MAX UNIT Rth j-c Thermal Resistance, Junction to Case 3.
