IXYN110N120C4 High Speed IGBT

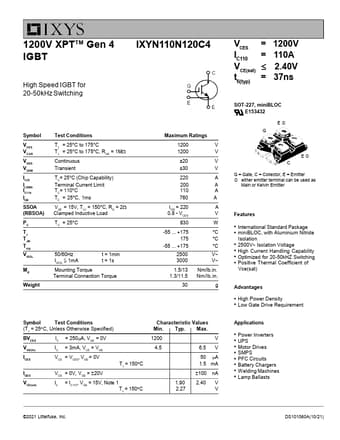

1200V XPTTM Gen 4 IGBT IXYN110N120C4 High Speed IGBT for 20-50kHz Switching Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg VISOL Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC= 25°C (Chip Capability) Terminal Current Limit TC= 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 2 Clamped Inductive Load TC = 25°C 50/60Hz IISOL 1mA t = 1min t = 1s Mounting Torque Terminal Connection Torque Maximum Ratings 12.

IXYN110N120C4 Features

* International Standard Package

* miniBLOC, with Aluminium Nitride Isolation

* 2500V~ Isolation Voltage

* High Current Handling Capability

* Optimized for 20-50kHZ Switching

* Positive Thermal Coefficient of Vce(sat) Advantages

* High Power Density

* Low Gate Drive R

IXYN110N120C4 Datasheet (845.56 KB)
