IXFQ90N20X3, IXFP90N20X3 - Power MOSFET

IXFQ90N20X3 Description

X3-Class HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXFP90N20X3 IXFQ90N20X3 IXFH90N20X3 VDSS = ID25 =  RDS(on) 200V 90A 12.

IXFQ90N20X3 Features

* International Standard Packages
* Low RDS(ON) and QG
* Avalanche Rated
* Low Package Inductance Advantages
* High Power Density
* Easy to Mount

IXFQ90N20X3 Applications

* Switch-Mode and Resonant-Mode Power Supplies
* DC-DC Converters
* PFC Circuits
* AC and DC Motor Drives
* Robotics and Servo Controls DS100802D(4/18) Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) gfs VDS = 10V, ID = 0.5
* ID25, Note 1 RGi Gate In

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IXFQ90N20X3, IXFP90N20X3. Please refer to the document for exact specifications by model.

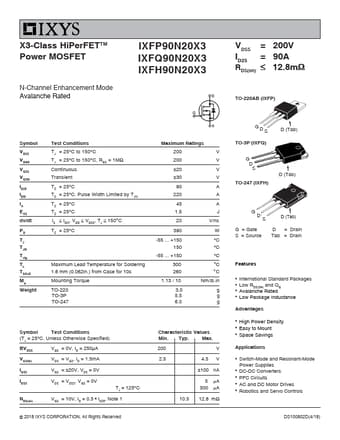

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IXFQ90N20X3, IXFP90N20X3
Manufacturer
IXYS
File Size
190.72 KB
Datasheet
IXFP90N20X3-IXYS.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IXFQ90N20X3, IXFP90N20X3.
Please refer to the document for exact specifications by model.
