CPC7508BTR - Line Card Access Switch

Product Overview

IXYS

📥 Download Datasheet

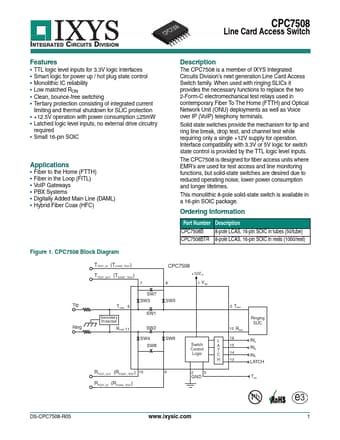

CPC7508BTR Line Card Access Switch by IXYS - Datasheet Preview — Datasheet preview – CPC7508BTR

Datasheet Details

Part number	CPC7508BTR
Manufacturer	IXYS
File Size	207.50 KB
Description	Line Card Access Switch
Datasheet	CPC7508BTR Datasheet
Note	This datasheet PDF includes multiple part numbers: CPC7508BTR, CPC7508. Please refer to the document for exact specifications by model.
Additional preview pages of the CPC7508BTR datasheet.

Product details

Description

The CPC7508 is a member of IXYS Integrated Circuits Division’s next generation Line Card Access Switch family.

Features

TTL logic level inputs for 3.3V logic interfaces.
Smart logic for power up / hot plug state control.
Monolithic IC reliability.
Low matched RON.
Clean, bounce-free switching.
Tertiary protection consisting of integrated current limiting and thermal shutdown for SLIC protection.
+12.5V operation with power consumption 25mW.
Latched logic level inputs, no external drive circuitry required.
Small 16-pin SOIC Applicat.
