CPC75282 - Line Card Access Switch

Product Overview

Clare

Datasheet Details

Part number	CPC75282
Manufacturer	Clare
File Size	457.52 KB
Description	Line Card Access Switch
Datasheet	CPC75282 Datasheet

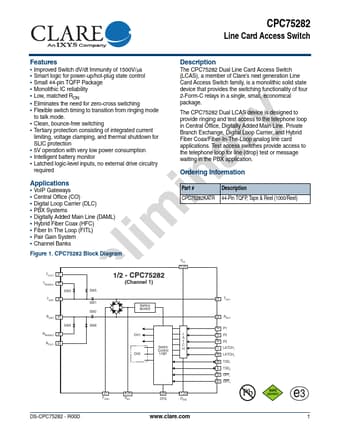

Additional preview pages of the CPC75282 datasheet.

Product details

Description

The CPC75282 Dual Line Card Access Switch (LCAS), a member of Clare’s next generation Line Card Access Switch family, is a monolithic solid state device that provides the switching functionality of four 2-Form-C relays in a single, small, economical package.

Features

Improved Switch dV/dt Immunity of 1500V/μs.
Smart logic for power-up/hot-plug state control.
Small 44-pin TQFP Package.
Monolithic IC reliability.
Low, matched RON.
Eliminates the need for zero-cross switching.
Flexible switch timing to transition from ringing mode to talk mode.
Clean, bounce-free switching.
Tertiary protection consisting of integrated current limiting, voltage clamping, and thermal shutdown for S.
