CPC7508 - Line Card Access Switch

Product Overview

IXYS

📥 Download Datasheet

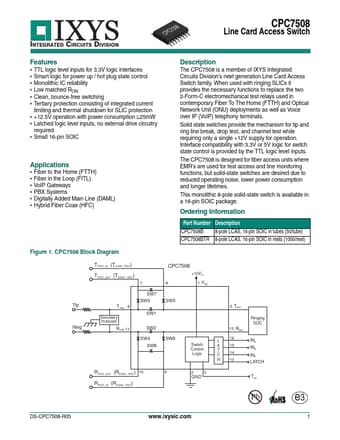

CPC7508 Line Card Access Switch by IXYS - Datasheet Preview — Datasheet preview – CPC7508

Datasheet Details

Part number	CPC7508
Manufacturer	IXYS
File Size	207.50 KB
Description	Line Card Access Switch
Datasheet	CPC7508 Datasheet
Additional preview pages of the CPC7508 datasheet.

Product details

Description

The CPC7508 is a member of IXYS Integrated Circuits Division’s next generation Line Card Access Switch family.

Features

TTL logic level inputs for 3.3V logic interfaces.
Smart logic for power up / hot plug state control.
Monolithic IC reliability.
Low matched RON.
Clean, bounce-free switching.
Tertiary protection consisting of integrated current limiting and thermal shutdown for SLIC protection.
+12.5V operation with power consumption 25mW.
Latched logic level inputs, no external drive circuitry required.
Small 16-pin SOIC Applicat.
