CPC7512 - High-Voltage High-Frequency Analog Switch

Product Overview

IXYS

Datasheet Details

Part number	CPC7512
Manufacturer	IXYS
File Size	303.26 KB
Description	High-Voltage High-Frequency Analog Switch
Datasheet	CPC7512 Datasheet

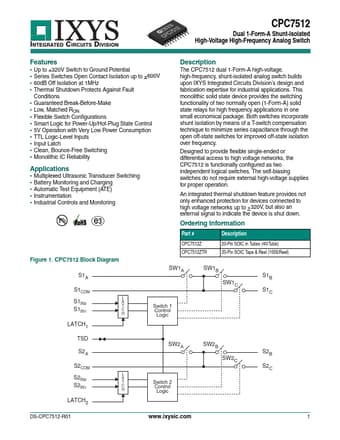

Additional preview pages of the CPC7512 datasheet.

Product details

Description

The CPC7512 dual 1-Form-A high-voltage, high-frequency, shunt-isolated analog switch builds upon IXYS Integrated Circuits Division’s design and fabrication expertise for industrial applications.

Features

Up to ±320V Switch to Ground Potential.
Series Switches Open Contact Isolation up to +600V.
60dB Off Isolation at 1MHz.
Thermal Shutdown Protects Against Fault Conditions.
Guaranteed Break-Before-Make.
Low, Matched RON.
Flexible Switch Configurations.
Smart Logic for Power-Up/Hot-Plug State Control.
5V Operation with Very Low Power Consumption.
TTL Logic-Level Inputs.
Input Latch.
Clean,.
