CPC7524B - Analog Switch Array

Product Overview

IXYS

📥 Download Datasheet

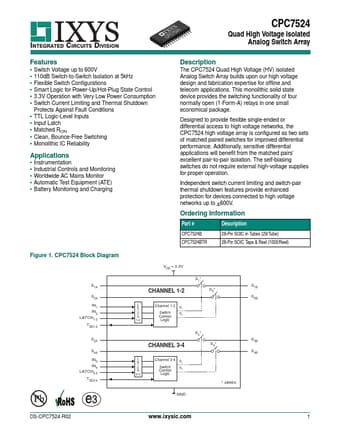

CPC7524B Analog Switch Array by IXYS - Datasheet Preview — Datasheet preview – CPC7524B

Datasheet Details

Part number	CPC7524B
Manufacturer	IXYS
File Size	213.89 KB
Description	Analog Switch Array
Datasheet	CPC7524B Datasheet
Note	This datasheet PDF includes multiple part numbers: CPC7524B, CPC7524. Please refer to the document for exact specifications by model.
Additional preview pages of the CPC7524B datasheet.

Product details

Description

The CPC7524 Quad High Voltage (HV) isolated Analog Switch Array builds upon our high voltage design and fabrication expertise for offline and telecom applications.

Features

Switch Voltage up to 600V.
110dB Switch-to-Switch Isolation at 5kHz.
Flexible Switch Configurations.
Smart Logic for Power-Up/Hot-Plug State Control.
3.3V Operation with Very Low Power Consumption.
Switch Current Limiting and Thermal Shutdown Protects Against Fault Conditions.
TTL Logic-Level Inputs.
Input Latch.
Matched RON.
Clean, Bounce-Free Switching.
Monolithic IC Reliability.
