IXSK30N60BD1 - High Speed IGBT

Features

  • International standard packages: JEDEC TO-247, TO-264& TO-268.
  • Short Circuit SOA capability.
  • Medium freqeuncy IGBT and antiparallel FRED in one package.
  • New generation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IXSH10N60B2D1 High-Speed IGBT IXYS
IXSH15N120B High-Voltage IGBT IXYS
IXSH16N60U1 IGBT IXYS
IXSH20N60 High Speed IGBT IXYS
IXSH20N60A High Speed IGBT IXYS

Other Datasheets by IXYS (Littelfuse)

Part Number Description
IXSK30N60CD1 Short Circuit SOA Capability
IXSK35N120AU1 High Voltage IGBT
IXSK35N120BD1 HIGH VOLTAGE IGBT WITH DIODE
IXSK40N60CD1 IGBT
IXSK50N60AU1 IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

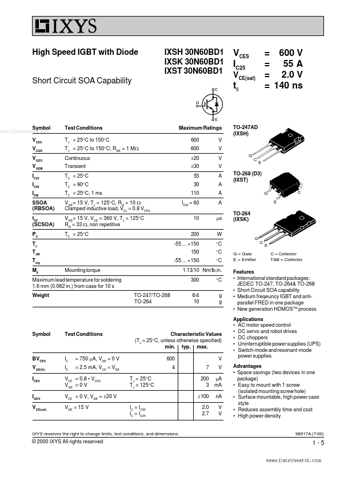

High Speed IGBT with Diode IXSH 30N60BD1 IXSK 30N60BD1 IXST 30N60BD1 VCES IC25 VCE(sat) Short Circuit SOA Capability tfi = 600 V = 55 A = 2.0 V = 140 ns www.DataSheet4U.com Symbol VCES VCGR Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1 ms VGE = 15 V, TJ = 125°C, RG = 10 W Clamped inductive load, VCL = 0.8 VCES VGE = 15 V, VCE = 360 V, TJ = 125°C RG = 33 W, non repetitive TC = 25°C Maximum Ratings 600 600 ±20 ±30 55 30 110 ICM = 60 10 200 -55 ... +150 150 -55 ...
