IRFS510A - Advanced Power MOSFET

IRF

📥 Download Datasheet

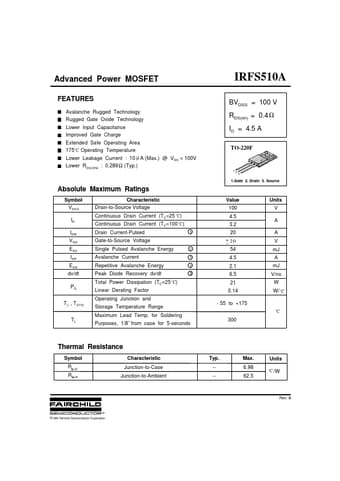

IRFS510A Datasheet Preview — Preview of IRFS510A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRFS510A
Manufacturer	IRF
File Size	253.80 KB
Description	Advanced Power MOSFET
Datasheet	IRFS510A_IRF.pdf

IRFS510A Product details

Features

Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area 175 C Operating Temperature Lower Leakage Current : 10 µ A (Max. ) @ VDS = 100V Lower RDS(ON) : 0.289 Ω (Typ. ) 1 Ο IRFS510A BVDSS = 100 V RDS(on) = 0.4 Ω ID = 4.5 A TO-220F 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25 C) Contin.
