IRFS5615 N-Channel MOSFET

IRFS5615 Description

Isc N-Channel MOSFET Transistor IRFS5615 *.

IRFS5615 Features

* With To-263(D2PAK) package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRFS5615 Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 150 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 33 24 140 PD Total Dissipation @TC=25℃ 144 Tch Max. Operating J

📥 Download Datasheet

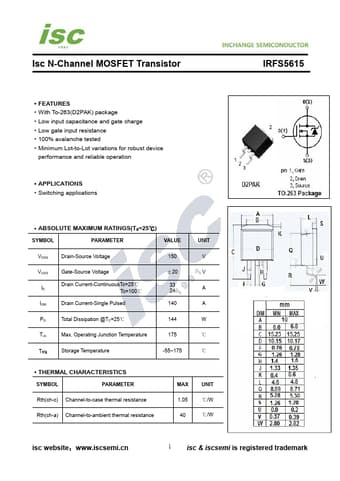

Preview of IRFS5615 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFS5615
Manufacturer
INCHANGE
File Size
253.13 KB
Datasheet
IRFS5615-INCHANGE.pdf
Description
N-Channel MOSFET
