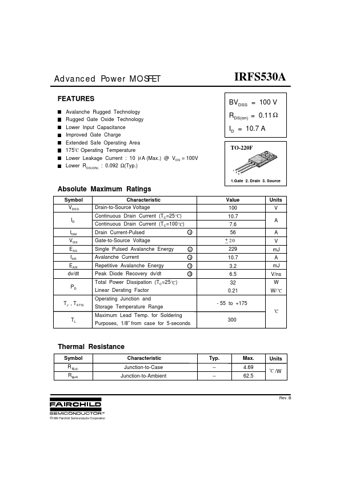

Advanced Power MOSFET
FEATURES
Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area 175 C Operating Temperature Lower Leakage Current : 10 µ A (Max.) @ VDS = 100V Lower RDS(ON) : 0.092 Ω(Typ.)
1
Ο
IRFS530A
BVDSS = 100 V RDS(on) = 0.11 Ω ID = 10.7 A
TO-220F
2
3
1.Gate 2. Drain 3. Source
Absolute Maximum Ratings
Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25 C)
Ο
Value 100 10.7 7.
