AUIPS2052G, AUIPS2051L (AUIPS2051L / AUIPS2052G) Intelligent Power Switch Single Channel Low Side Driver

AUIPS2052G Description

March, 23rd 2009 Automotive grade AUIPS2051L/AUIPS2052G INTELLIGENT POWER LOW SIDE SWITCH .
The AUIPS2051L/AUIPS2052G is a three terminal Intelligent Power Switch (IPS) that features a low side MOSFET with over-current, over-temperature, ESD.

AUIPS2052G Features

* Over temperature shutdown Over current shutdown Active clamp Low current & logic level input ESD protection Optimized Turn On/Off for EMI Diagnostic on the input current Product Summary Rds(on) 300mΩ (max. ) Vclamp 70V Ishutdown 1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AUIPS2052G, AUIPS2051L. Please refer to the document for exact specifications by model.

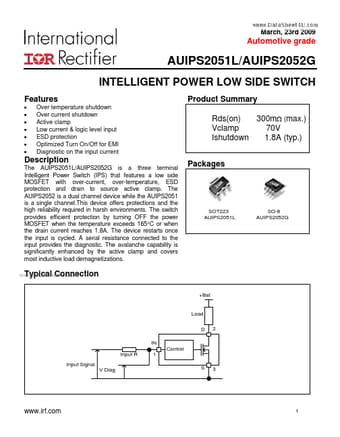

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AUIPS2052G, AUIPS2051L
Manufacturer
IRF
File Size
632.77 KB
Datasheet
AUIPS2051L_IRF.pdf
Description
(AUIPS2051L / AUIPS2052G) Intelligent Power Switch Single Channel Low Side Driver
Note
This datasheet PDF includes multiple part numbers: AUIPS2052G, AUIPS2051L.
Please refer to the document for exact specifications by model.
