AUIPS1011 INTELLIGENT POWER LOW SIDE SWITCH

AUIPS1011 Description

June, 21st 2012 Automotive grade AUIPS1011(S)(R) INTELLIGENT POWER LOW SIDE SWITCH .
The AUIPS1011(S)(R) is a three terminal Intelligent Power Switch (IPS) that features a low side MOSFET with overcurrent, over-temperature, ESD protect.

AUIPS1011 Features

* Over temperature shutdown
* Over current shutdown
* Active clamp
* Low current & logic level input
* ESD protection
* Optimized Turn On/Off for EMI

📥 Download Datasheet

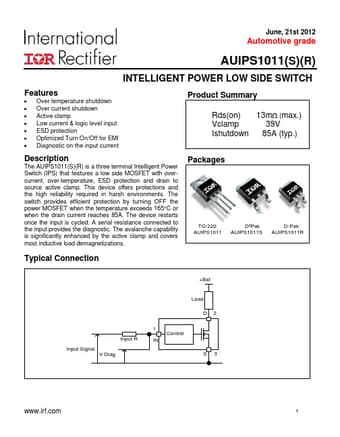

Preview of AUIPS1011 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AUIPS1011
Manufacturer
International Rectifier
File Size
751.54 KB
Datasheet
AUIPS1011-InternationalRectifier.pdf
Description
INTELLIGENT POWER LOW SIDE SWITCH
