AUIPS2041L, AUIPS2041 INTELLIGENT POWER LOW SIDE SWITCH

AUIPS2041L Description

May 9th 2012 Automotive grade AUIPS2041(R)(L) INTELLIGENT POWER LOW SIDE SWITCH .
The AUIPS2041(R)(L) is a three terminal Intelligent Power Switch (IPS) that features a low side MOSFET with overcurrent, over-temperature, ESD protect.

AUIPS2041L Features

* Over temperature shutdown
* Over current shutdown
* Active clamp
* Low current & logic level input
* ESD protection
* Optimized Turn On/Off for EMI

AUIPS2041L Applications

* assistance or custo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AUIPS2041L, AUIPS2041. Please refer to the document for exact specifications by model.

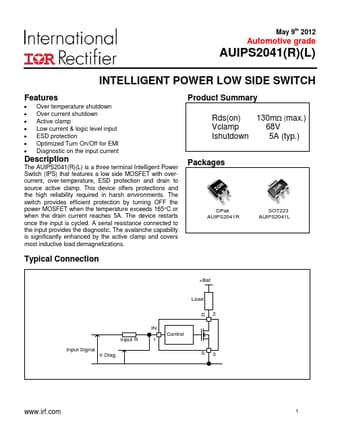

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AUIPS2041L, AUIPS2041
Manufacturer
International Rectifier
File Size
476.30 KB
Datasheet
AUIPS2041-InternationalRectifier.pdf
Description
INTELLIGENT POWER LOW SIDE SWITCH
Note
This datasheet PDF includes multiple part numbers: AUIPS2041L, AUIPS2041.
Please refer to the document for exact specifications by model.
