STPS30L120CT Schottky Barrier Rectifier

STPS30L120CT Description

Schottky Barrier Rectifier INCHANGE Semiconductor STPS30L120CT .

STPS30L120CT Features

* High junction temperature capability
* Low Power Loss,high Efficiency
* Low forward voltage drop current
* High Surge Capability,High Current Capability

STPS30L120CT Applications

* Be suited for high frequency switch mode power supplies. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 120 V IF(AV) Average Rectified Forward Current 30 A Nonrepetitive Peak

📥 Download Datasheet

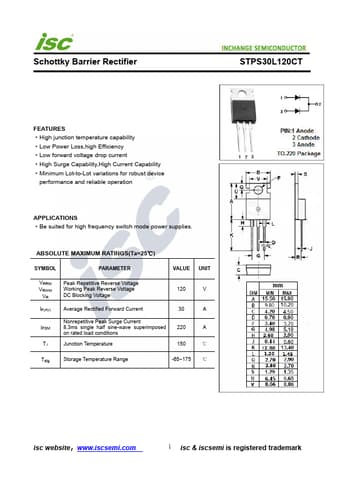

Preview of STPS30L120CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
STPS30L120CT
Manufacturer
INCHANGE
File Size
183.85 KB
Datasheet
STPS30L120CT-INCHANGE.pdf
Description
Schottky Barrier Rectifier
