STP20NM60FD N-Channel MOSFET

STP20NM60FD Description

isc N-Channel Mosfet Transistor *.

STP20NM60FD Features

* Drain Current ID= 20A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP20NM60FD Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 20 A IDM Pulse Drain Current 80 A Ptot Total Dissipation@TC=25℃ 192 W Tj Max. Oper

📥 Download Datasheet

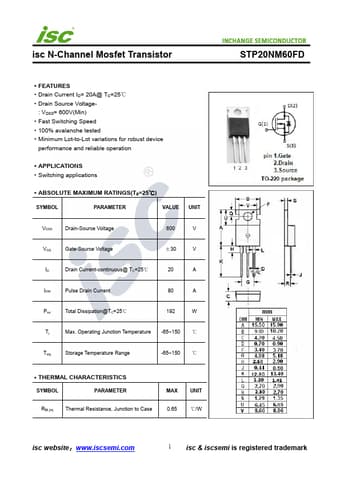

Preview of STP20NM60FD PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP20NM60FD
Manufacturer
INCHANGE
File Size
254.78 KB
Datasheet
STP20NM60FD-INCHANGE.pdf
Description
N-Channel MOSFET
