STP20N06 N-CHANNEL POWER MOSFET

STP20N06 Description

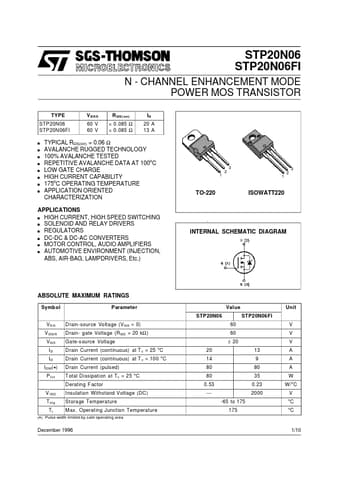

STP20N06 STP20N06FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR TYPE STP20N06 STP20N06FI s s s s s s s s V DSS 60 V 60 V R DS( on) < 0.085 Ω <.

STP20N06 Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter STP20N06 VD S V DG
