STP20NM50, STP20NM50FP N-CHANNEL POWER MOSFET

STP20NM50 Description

STB20NM50 - STB20NM50-1 STP20NM50 - STP20NM50FP N-channel 500V - 0.20Ω - 20A - TO220/FP-D2PAK-I2PAK MDmesh™ Power MOSFET General .
The MDmesh™ is a new revolutionary Power MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™horizontal layout.

STP20NM50 Features

* Type STB20NM50 STB20NM50-1 STP20NM50 STP20NM50FP VDSS (@TJmax) 550V 550V 550V 550V RDS(on) < 0.25Ω < 0.25Ω < 0.25Ω < 0.25Ω ID 20A 20A 20A 20A
* High dv/dt and avalanche capabilities
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate input resistance Desc

STP20NM50 Applications

* Switching applications 3 2 1 TO-220 3 2 1 TO-220FP 123 I²PAK 3 1 D²PAK Internal schematic diagram Order codes Part number STB20NM50 STB20NM50-1 STP20NM50 STP20NM50FP Marking B20NM50 B20NM50-1 P20NM50 P20NM50FP Package D²PAK I²PAK TO-220 TO-220FP Packaging Tape & reel Tube Tube Tube J

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP20NM50, STP20NM50FP. Please refer to the document for exact specifications by model.

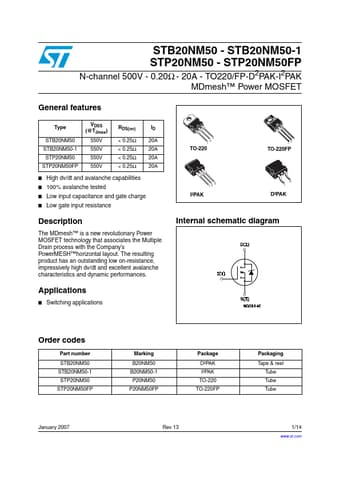

datasheet Preview Page 2 datasheet Preview Page 3
