2SK2652 - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

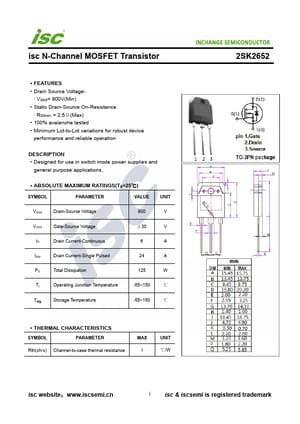

2SK2652 Datasheet Preview — Preview of 2SK2652 PDF

Datasheet Details

Part number	2SK2652
Manufacturer	INCHANGE
File Size	246.88 KB
Description	N-Channel MOSFET
Datasheet	2SK2652-INCHANGE.pdf

2SK2652 Product details

Description

Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage VGSS Gate-Source Voltage ID Drain Current-Continuous IDM Drain Current-Single Pulsed PD Total Dissipation Tj Operating Junction Temperature 900 V ±30 V 6 A 24 A 125 W -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(ch-c) Channel-to-case t

Features

Drain Source Voltage- : VDSS= 900V(Min).
Static Drain-Source On-Resistance : RDS(on) = 2.5Ω(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
