2SK2652-01 - N-channel MOS-FET

Features

  • High Speed Switching Low On-Resistance No Secondary Breakdown Low Driving Power High Voltage VGS = ± 30V Guarantee Repetitive Avalanche Rated N-channel MOS-FET 900V 2,5Ω 6A 125W > Outline Drawing >.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2652 N-Channel MOSFET INCHANGE
2SK2654 N-Channel MOSFET INCHANGE
2SK260 N-Channel MOSFET Transistor Inchange Semiconductor
2SK2601 N-Channel MOSFET Toshiba Semiconductor
2SK2601 N-Channel MOSFET INCHANGE

Other Datasheets by Fuji Electric

Part Number Description
2SK2651-01MR N-channel MOS-FET
2SK2653-01R N-channel MOS-FET
2SK2654-01 N-channel MOS-FET
2SK2655-01R N-channel MOS-FET
2SK2638-01MR N-channel MOS-FET

Full PDF Text Transcription

Click to expand full text

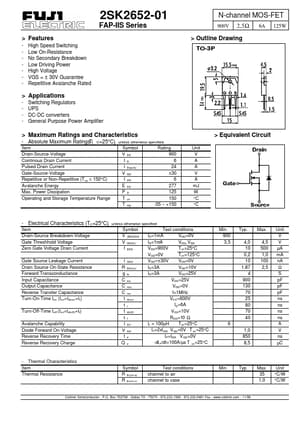

2SK2652-01 FAP-IIS Series > Features High Speed Switching Low On-Resistance No Secondary Breakdown Low Driving Power High Voltage VGS = ± 30V Guarantee Repetitive Avalanche Rated N-channel MOS-FET 900V 2,5Ω 6A 125W > Outline Drawing > Applications Switching Regulators UPS DC-DC converters General Purpose Power Amplifier > Maximum Ratings and Characteristics - Absolute Maximum Ratings T( C=25°C), unless otherwise specified > Equivalent Circuit Rating 900 6 24 ±30 6 277 125 150 -55 ~ +150 Unit V A A V A mJ W °C °C Item Drain-Source-Voltage Continous Drain Current Pulsed Drain Current Gate-Source-Voltage Repetitive or Non-Repetitive (Tch ≤ 150°C) Avalanche Energy Max.
